MLX75305KXD-AAA-000-RE footprint, schematic symbol and 3D model by Melexis

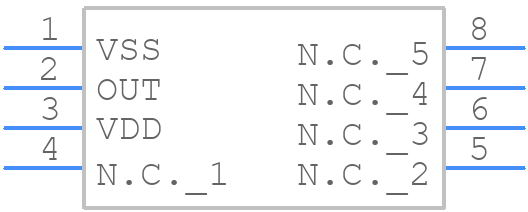

Symbol

PCB Footprints

3D Models

MLX75305KXD-AAA-000-RE Details

A good PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, and to use thermal vias to dissipate heat to the other side of the board. A minimum of 4-6 thermal vias with a diameter of 0.3-0.5mm is recommended.
To ensure accurate temperature measurements, it's essential to calibrate the sensor, use a high-precision ADC, and minimize noise and interference in the circuit. Additionally, the sensor should be placed in a location that is representative of the temperature being measured, and the thermal mass of the sensor should be minimized.
The maximum allowed voltage on the VDD pin is 3.6V. Exceeding this voltage may damage the device.
The MLX75305 can be interfaced with a microcontroller using the I2C or SPI protocol. The device address and register addresses should be set according to the datasheet, and the microcontroller should be configured to communicate with the MLX75305 at a clock frequency of up to 400 kHz.
The typical current consumption of the MLX75305 is around 1.5mA, but this can vary depending on the operating mode and the frequency of measurements.

Community Provided

System Verified

Community Approved

Use the download button to access the MLX75305KXD-AAA-000-RE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MLX75, or try a keyword search, such as Photo ICs
