MLX90248ELD-EBA-000-RE - Melexis

Description: Board Mount Hall Effect / Magnetic Sensors Bop/Brp: 3.5 / 2.5 mT TC= 0ppm/ C Isleep= 3.5 A Vdd= 1.5 - 3.6V

Download MLX90248ELD-EBA-000-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

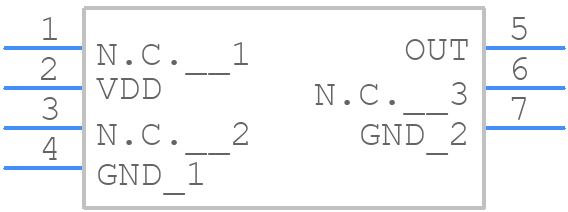

Symbol
MLX90248ELD-EBA-000-RE - Melexis - PCB symbol
click to zoom
PCB Footprints
MLX90248ELD-EBA-000-RE - Melexis PCB footprint - Other - Other - MLX90248ELD-EBA-000-RE-1
click to zoom
3D Models
MLX90248ELD-EBA-000-RE - Melexis - 3D model - Other - MLX90248ELD-EBA-000-RE-1
click to zoom

MLX90248ELD-EBA-000-RE Details

  • Manufacturer Part Number:

    MLX90248ELD-EBA-000-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    UTQFN-6

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • YTEOL:

    2

  • Body Breadth:

    1.5 mm

  • Body Height:

    0.33 mm

  • Body Length or Diameter:

    2 mm

  • Hysteresis:

    2.3 mT

  • Input Mode:

    OMNIPOLAR

  • JESD-609 Code:

    e4

  • Magnetic Field Range-Max:

    6 mT

  • Magnetic Field Range-Min:

    -0.8 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Current-Max:

    5 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Circuit Type:

    OPEN-DRAIN

  • Output Type:

    CURRENT OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

MLX90248ELD-EBA-000-RE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated thermal layer and a thermal via under the IC is recommended. The thermal layer should be connected to a large copper area to dissipate heat efficiently.
  • Calibrate the sensor using the provided calibration coefficients, and ensure that the sensor is not exposed to thermal gradients or air flows that could affect accuracy.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the MLX90248ELD-EBA-000-RE is designed to withstand vibrations up to 10g. However, it's recommended to follow proper mounting and soldering procedures to ensure reliable operation.
  • The sensor communicates using a standard I2C interface. Use a microcontroller with an I2C peripheral and follow the I2C protocol to read temperature data from the sensor.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MLX90248ELD-EBA-000-RE Overview

Use the download button to access the MLX90248ELD-EBA-000-RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX90, or try a keyword search, such as Magnetic Field Sensors
