MLX90316KDC-BCG-300-RE - Melexis

Description: Board Mount Hall Effect / Magnetic Sensors Rotary Position Sensor IC

Download MLX90316KDC-BCG-300-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

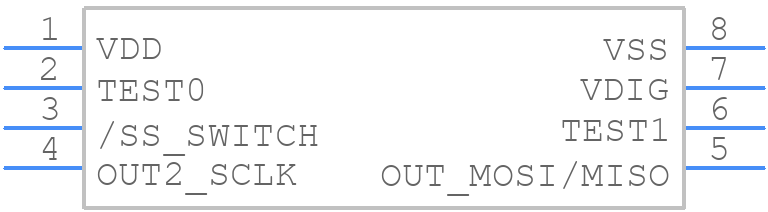

MLX90316KDC-BCG-300-RE - Melexis - PCB symbol
click to zoom
PCB Footprints

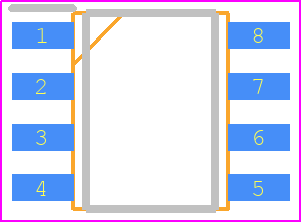

MLX90316KDC-BCG-300-RE - Melexis PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8
click to zoom
3D Models
MLX90316KDC-BCG-300-RE - Melexis - 3D model - Small Outline Packages - SOIC8
click to zoom

MLX90316KDC-BCG-300-RE Details

  • Manufacturer Part Number:

    MLX90316KDC-BCG-300-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • Additional Feature:

    ITS ALSO HAVE DIGITAL OUTPUT CURRENT -20 TO 20 MILLI AMPERE

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.62 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    16 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SINGLE-ENDED

  • Output Circuit Type:

    SINGLE-ENDED

  • Output Interface Type:

    3-WIRE INTERFACE

  • Output Range:

    -8-8mA

  • Output Type:

    ANALOG CURRENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    400 µs

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

MLX90316KDC-BCG-300-RE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the VCC pin.
  • Calibration involves adjusting the internal offset and sensitivity of the device. Use the MLX90316's built-in calibration mode and follow the calibration procedure outlined in the application note AN302-01.
  • The MLX90316KDC-BCG-300-RE is rated for operation from -40°C to 150°C. However, the accuracy and linearity of the device may degrade at extreme temperatures.
  • The MLX90316KDC-BCG-300-RE is not certified for safety-critical applications. If you need a safety-certified device, consider the MLX90316KDC-BCG-300-RE's ASIL-rated variant or consult with Melexis for custom solutions.
  • Follow proper PCB design and layout guidelines, use shielding and filtering as needed, and ensure that the device is properly grounded. Consult the application note AN302-02 for more information on EMC considerations.
