A good PCB layout for the MLX90316KDC-BDG-100-RE involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and electromagnetic interference (EMI).
Calibration of the MLX90316KDC-BDG-100-RE involves applying a known magnetic field to the device and adjusting the offset and sensitivity registers to achieve accurate measurements. The calibration process may require specialized equipment and software.
The MLX90316KDC-BDG-100-RE has an operating temperature range of -40°C to 125°C, but the device's accuracy and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in the system design.
The MLX90316KDC-BDG-100-RE is not designed for safety-critical applications and does not have the necessary certifications (e.g., ASIL, SIL) for use in such systems. It's essential to consult with Melexis or a qualified safety expert to determine the suitability of the device for a specific application.
To ensure EMC with the MLX90316KDC-BDG-100-RE, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the device is properly grounded and decoupled. Additionally, perform EMC testing to ensure compliance with relevant standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MLX90316KDC-BDG-100-RE Overview

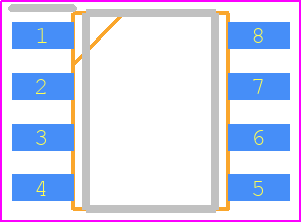

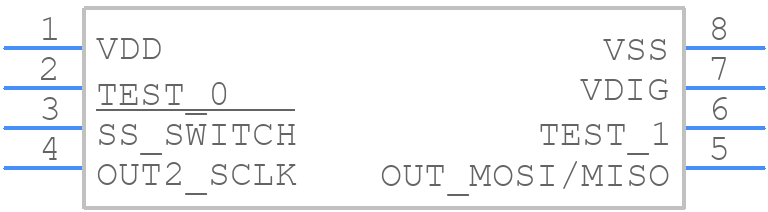

Use the download button to access the MLX90316KDC-BDG-100-RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX90,
or try a keyword search, such as Rotary Position Sensors
