MLX90328LDC-DBA-000-RE - Melexis

Description: AUTOMOTIVE SENSOR INTERFACE

Download MLX90328LDC-DBA-000-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

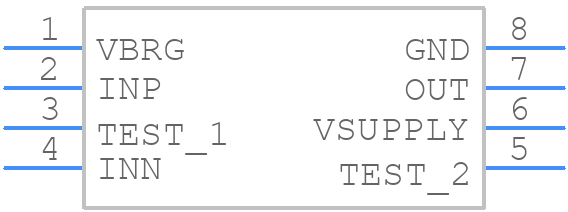

Symbol
MLX90328LDC-DBA-000-RE - Melexis - PCB symbol
click to zoom
PCB Footprints
MLX90328LDC-DBA-000-RE - Melexis PCB footprint - Small Outline Packages - Small Outline Packages - DC = SOIC-8 Plastic Small Outline, 150 mil
click to zoom
3D Models
MLX90328LDC-DBA-000-RE - Melexis - 3D model - Small Outline Packages - DC = SOIC-8 Plastic Small Outline, 150 mil
click to zoom

MLX90328LDC-DBA-000-RE Details

  • Manufacturer Part Number:

    MLX90328LDC-DBA-000-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.95 mm

MLX90328LDC-DBA-000-RE Frequently Asked Questions (FAQs)

  • Melexis provides a recommended PCB layout in their application note AN302320, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Melexis provides a calibration procedure in their application note AN302320, which involves setting the internal calibration registers and adjusting the gain and offset values to match the specific requirements of your application.
  • The MLX90328LDC-DBA-000-RE is rated for operation from -40°C to 150°C, but it's recommended to operate within the -20°C to 125°C range for optimal performance and reliability.
  • Yes, the MLX90328LDC-DBA-000-RE is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and mechanical design guidelines to ensure reliable operation.
  • The MLX90328LDC-DBA-000-RE can be interfaced with a microcontroller using a standard SPI or I2C interface, and Melexis provides example code and documentation to help with the integration process.
