MLX90365LDC-ABD-000-RE - Melexis

Description: Board Mount Motion & Position Sensors Triaxis Programmable Rotary & Linear Position Sensor feat. Ratiometric Analog & PWM Outputs (Gen. II )

Download MLX90365LDC-ABD-000-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

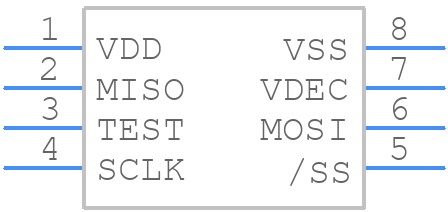

MLX90365LDC-ABD-000-RE - Melexis - PCB symbol
click to zoom
PCB Footprints

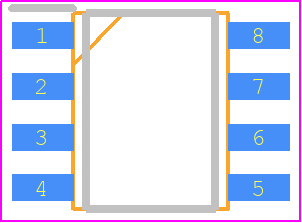

MLX90365LDC-ABD-000-RE - Melexis PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8
click to zoom
3D Models
MLX90365LDC-ABD-000-RE - Melexis - 3D model - Small Outline Packages - SOIC8
click to zoom

MLX90365LDC-ABD-000-RE Details

  • Manufacturer Part Number:

    MLX90365LDC-ABD-000-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-8

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.62 mm

  • Body Length or Diameter:

    4.89 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    1450 µs

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

MLX90365LDC-ABD-000-RE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the VCC pin.
  • Calibration involves applying a known magnetic field and adjusting the internal calibration registers. Refer to the application note AN302-1 for a detailed calibration procedure.
  • The MLX90365LDC-ABD-000-RE is rated for operation from -40°C to 125°C. However, the accuracy and sensitivity may degrade at extreme temperatures.
  • The MLX90365LDC-ABD-000-RE is not certified for safety-critical applications. However, it can be used in safety-critical applications with proper design, testing, and validation according to relevant safety standards (e.g., ISO 26262).
  • Use a shielded cable for the sensor connections, keep the sensor away from high-current carrying wires, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
