MLX90378GGO-ABJ-300-RE - Melexis

Description: Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included Gull Wing

Download MLX90378GGO-ABJ-300-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

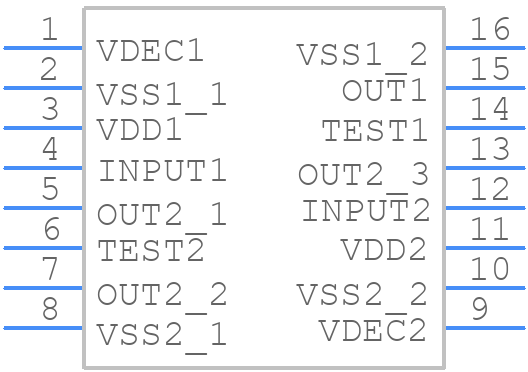

MLX90378GGO-ABJ-300-RE - Melexis - PCB symbol
click to zoom
PCB Footprints
MLX90378GGO-ABJ-300-RE - Melexis PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16
click to zoom
3D Models
MLX90378GGO-ABJ-300-RE - Melexis - 3D model - Small Outline Packages - TSSOP-16
click to zoom

MLX90378GGO-ABJ-300-RE Details

  • Manufacturer Part Number:

    MLX90378GGO-ABJ-300-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-11-28

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    160 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MLX90378GGO-ABJ-300-RE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and a solid ground connection to the device's GND pin is recommended. Additionally, keep the analog and digital traces separate and avoid running them parallel to each other.
  • To ensure accurate temperature measurement, ensure good thermal contact between the device and the target surface. Also, calibrate the device according to the datasheet's calibration procedure, and consider using a thermocouple or other temperature reference for accurate temperature measurement.
  • The MLX90378GGO-ABJ-300-RE can operate from -40°C to 150°C, but the accuracy of the temperature measurement may degrade at extreme temperatures. Consult the datasheet for specific temperature range and accuracy information.
  • Yes, the MLX90378GGO-ABJ-300-RE is designed to withstand high-vibration environments. However, ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The MLX90378GGO-ABJ-300-RE communicates via a standard SPI interface. Ensure that the microcontroller's SPI pins are compatible with the device's operating voltage and frequency. Consult the datasheet for specific interface and communication protocols.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MLX90378GGO-ABJ-300-RE Overview

Use the download button to access the MLX90378GGO-ABJ-300-RE schematic symbol, PCB footprint, and 3D model.
