Melexis provides a recommended PCB layout in their application note AN302-1, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Calibration of the MLX90395KDC-BBA-101-RE typically involves adjusting the gain and offset of the sensor output to match the specific requirements of your application. Melexis provides a calibration procedure in their application note AN302-2, which includes steps for determining the optimal gain and offset values.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Melexis recommends operating the device within a temperature range of -20°C to 125°C for optimal performance.
Yes, the MLX90395KDC-BBA-101-RE is designed to operate in high-vibration environments, but it's crucial to ensure proper mounting and mechanical fixation of the device to prevent damage or performance degradation. Melexis recommends following their guidelines for mechanical mounting and vibration testing in their application note AN302-3.
Melexis provides a troubleshooting guide in their application note AN302-4, which covers common issues and their potential causes, as well as steps for debugging and resolving problems. Additionally, Melexis offers technical support and resources to help engineers troubleshoot and optimize their designs.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MLX90395KDC-BBA-101-RE Overview

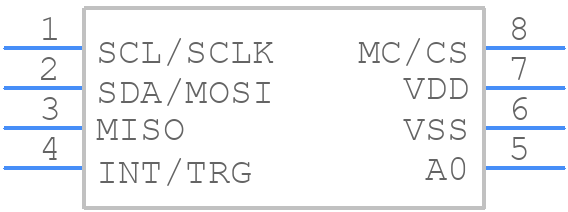

Use the download button to access the MLX90395KDC-BBA-101-RE schematic symbol, PCB footprint, and 3D model.
