The recommended PCB layout involves keeping the sensor away from heat sources, using a solid ground plane, and minimizing thermal resistance between the sensor and the PCB. A thermal pad or heat sink can be used to dissipate heat. Refer to the Melexis application note AN301 for more details.
The MLX90614ESF-AAA is factory-calibrated, but users can perform a one-point calibration to improve accuracy. This involves measuring the temperature of a known reference point and adjusting the sensor's output accordingly. Melexis provides a calibration procedure in their application note AN299.
The maximum distance depends on the object's emissivity and the desired accuracy. As a general rule, the sensor should be within 1-5 cm of the object for accurate measurements. Increasing the distance will reduce the accuracy and increase the measurement time.
The MLX90614ESF-AAA is rated for operation up to 125°C, but it's not recommended to expose it to temperatures above 100°C for extended periods. High temperatures can affect the sensor's accuracy and reduce its lifespan. If high-temperature operation is required, consider using a heat shield or thermal protection.
Noise and interference can be minimized by using a low-pass filter, shielding the sensor and its connections, and ensuring a stable power supply. Additionally, Melexis recommends using a 10nF capacitor between the VDD and GND pins to reduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MLX90614ESF-AAA Overview

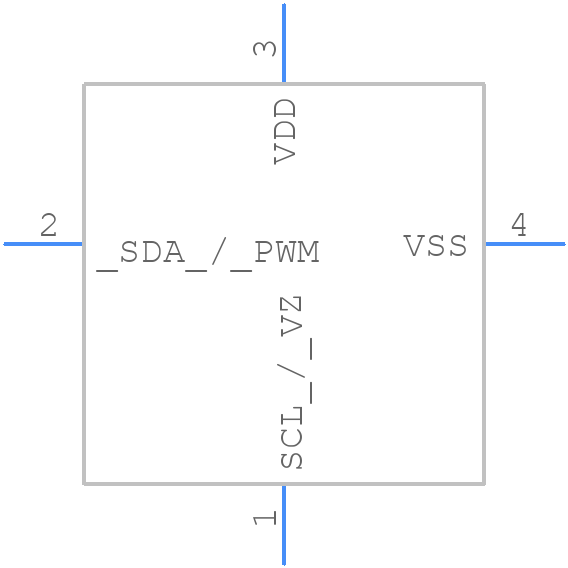

Use the download button to access the MLX90614ESF-AAA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX90,
or try a keyword search, such as Temperature Sensors
