A symmetrical layout with a central thermal pad connected to a large copper area on the PCB is recommended. This helps to dissipate heat efficiently and ensures accurate temperature measurements.
Calibration is not required for the MLX90614ESF-ACF-000-TU as it is a calibrated device. However, for high-accuracy measurements, it is recommended to perform a system-level calibration using a thermocouple or other reference temperature sensor.
The maximum distance depends on the object's emissivity and the desired accuracy. As a general rule, the distance should be less than 10 cm for accurate measurements. However, this can be increased to 30 cm or more with the use of a reflective shield or other optical aids.
The MLX90614ESF-ACF-000-TU is rated for operation up to 125°C. However, the device's accuracy and reliability may be affected at high temperatures. It is recommended to use a heat sink or other thermal management techniques to keep the device temperature below 100°C.
The MLX90614ESF-ACF-000-TU communicates via an I2C interface. A 4.7 kΩ pull-up resistor is required on the SCL line, and a 2.2 kΩ pull-up resistor is required on the SDA line. The device's address can be set using the AD0 pin.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MLX90614ESF-ACF-000-TU Overview

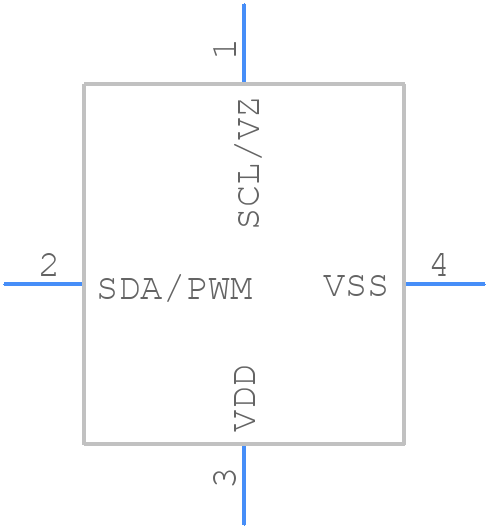

Use the download button to access the MLX90614ESF-ACF-000-TU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX90,
or try a keyword search, such as Temperature Sensors
