The recommended PCB layout and thermal management for the MLX91204KDC-ABA-001-RE can be found in the Melexis application note AN302010, which provides guidelines for thermal design, PCB layout, and component placement to ensure optimal performance and reliability.
Calibration of the MLX91204KDC-ABA-001-RE involves a two-point calibration process, where the sensor is exposed to a known magnetic field and the output is measured. The calibration process is described in the Melexis application note AN302011, which provides step-by-step instructions and formulas to calculate the calibration coefficients.
The MLX91204KDC-ABA-001-RE has an operating temperature range of -40°C to 150°C. The accuracy of the sensor may be affected by temperature variations, with a typical temperature coefficient of ±0.1%/K. For high-accuracy applications, temperature compensation may be necessary, and Melexis provides guidance on temperature compensation in the application note AN302012.
The MLX91204KDC-ABA-001-RE can be interfaced with a microcontroller using a standard SPI or I2C interface. Melexis provides example code and communication protocols in the datasheet and application notes, including AN302013, which provides a detailed description of the communication protocol and register map.
The MLX91204KDC-ABA-001-RE is designed to meet the radiation and EMC requirements for automotive applications, including ISO 26262 and IEC 61508. Melexis provides detailed information on radiation and EMC testing and compliance in the datasheet and application notes, including AN302014, which provides guidance on EMC design and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MLX91204KDC-ABA-001-RE Overview

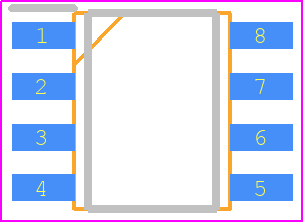

Use the download button to access the MLX91204KDC-ABA-001-RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX91,
or try a keyword search, such as Rotary Position Sensors
