MLX91206LDC-CAL-001-TU - Melexis

Description: Board Mount Current Sensors Programmable IMC-Hall Current Sensor IC in SOIC8 - 460-700 mV/mT (580mV/mT) - Analog Output

Download MLX91206LDC-CAL-001-TU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

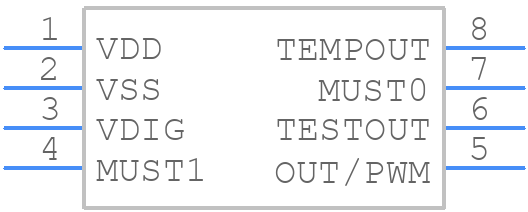

Symbol
MLX91206LDC-CAL-001-TU - Melexis - PCB symbol
click to zoom

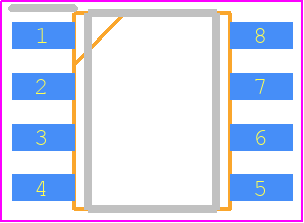

PCB Footprints
MLX91206LDC-CAL-001-TU - Melexis PCB footprint - Small Outline Packages - Small Outline Packages - soic-8/
click to zoom
3D Models
MLX91206LDC-CAL-001-TU - Melexis - 3D model - Small Outline Packages - soic-8/
click to zoom

MLX91206LDC-CAL-001-TU Details

  • Manufacturer Part Number:

    MLX91206LDC-CAL-001-TU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • YTEOL:

    0

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.475 mm

  • Body Length or Diameter:

    4.89 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    -2-2mA

  • Output Type:

    DIGITAL CURRENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Packing Method:

    TUBE

  • Screening Level:

    TS 16949

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

MLX91206LDC-CAL-001-TU Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and a solid ground pour on the top and bottom layers is recommended. Keep the analog and digital traces separate and avoid crossing them over each other.
  • Calibration involves applying a known magnetic field and adjusting the internal calibration registers to minimize the error. Refer to the application note AN302-01 for a detailed calibration procedure.
  • The MLX91206LDC-CAL-001-TU is rated for operation from -40°C to 125°C. However, the accuracy and sensitivity may degrade at extreme temperatures.
  • The MLX91206LDC-CAL-001-TU is not certified for safety-critical applications. It is recommended to use a safety-certified variant or consult with Melexis for custom solutions.
  • The MLX91206LDC-CAL-001-TU communicates via a standard SPI interface. Use a 3.3V or 5V microcontroller with a compatible SPI peripheral to interface with the sensor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MLX91206LDC-CAL-001-TU Overview

Use the download button to access the MLX91206LDC-CAL-001-TU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX91, or try a keyword search, such as Other Sensors/Transducers
