MLX91208LDC-CAL-000-TU footprint, schematic symbol and 3D model by Melexis

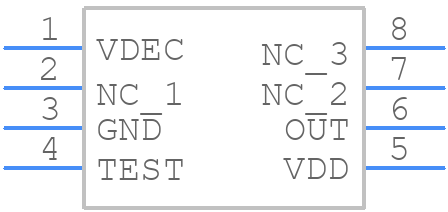

Symbol

click to zoom

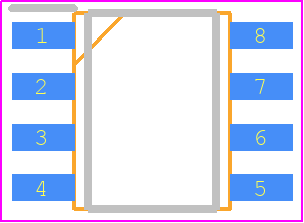

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MLX91208LDC-CAL-000-TU
Part Number MLX91208LDC-CAL-000-TU
Manufacturer Melexis
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC-8_2026
Released Date Apr 28, 2026
Last Modified Date Apr 28, 2026 3:34 AM UTC
Pinout / Pin List Click Here (Member Only)

MLX91208LDC-CAL-000-TU Details

Manufacturer Part Number:
MLX91208LDC-CAL-000-TU
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOIC-8
Manufacturer:
Melexis Microelectronic Integrated Systems
YTEOL:
7
Additional Feature:
IT HAS SENSITIVITY OF 250 MV/MT
Body Breadth:
3.9 mm
Body Height:
1.64 mm
Body Length or Diameter:
4.89 mm
Housing:
PLASTIC
Hysteresis:
0.01 mT
JESD-609 Code:
e3
Magnetic Field Range-Max:
10 mT
Magnetic Field Range-Min:
-10 mT
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Current-Max:
14 mA
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output:
ANALOG
Output Circuit Type:
SINGLE-ENDED
Output Current-Max:
2 mA
Output Range:
-2-2mA
Output Type:
ANALOG CURRENT
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
SOP8,.25
Package Shape/Style:
RECTANGULAR
Packing Method:
TUBE
Resistance:
1 Ω
Screening Level:
AEC-Q100
Sensitivity (mV/G):
2500 mV/G
Sensors/Transducers Type:
MAGNETIC FIELD SENSOR,HALL EFFECT
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Termination Type:
SOLDER
