MLX91210KDC-CAS-101-RE - Melexis

Description: Board Mount Current Sensors Plug & Power Current Sensor IC in SOIC8 - 2.1kV Isolation - Analog Output

Download MLX91210KDC-CAS-101-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

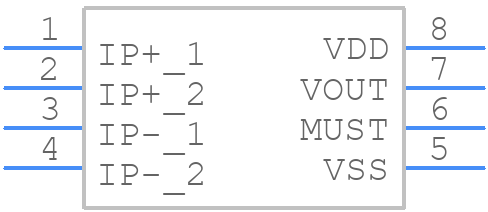

MLX91210KDC-CAS-101-RE - Melexis - PCB symbol
click to zoom
PCB Footprints
MLX91210KDC-CAS-101-RE - Melexis PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8_NB
click to zoom
3D Models
MLX91210KDC-CAS-101-RE - Melexis - 3D model - Small Outline Packages - SOIC8_NB
click to zoom

MLX91210KDC-CAS-101-RE Details

  • Manufacturer Part Number:

    MLX91210KDC-CAS-101-RE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • Manufacturer:

    Melexis Microelectronic Integrated Systems

  • YTEOL:

    0

  • Body Breadth:

    3.937 mm

  • Body Height:

    1.4732 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS
