MM5829-2700RJ4 - Murata Electronics

Description: RF Connectors / Coaxial Connectors 12GHz 0.035ohm JSC Type Connector Surface Mount30 V -40°C ~ 85°C

Download MM5829-2700RJ4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

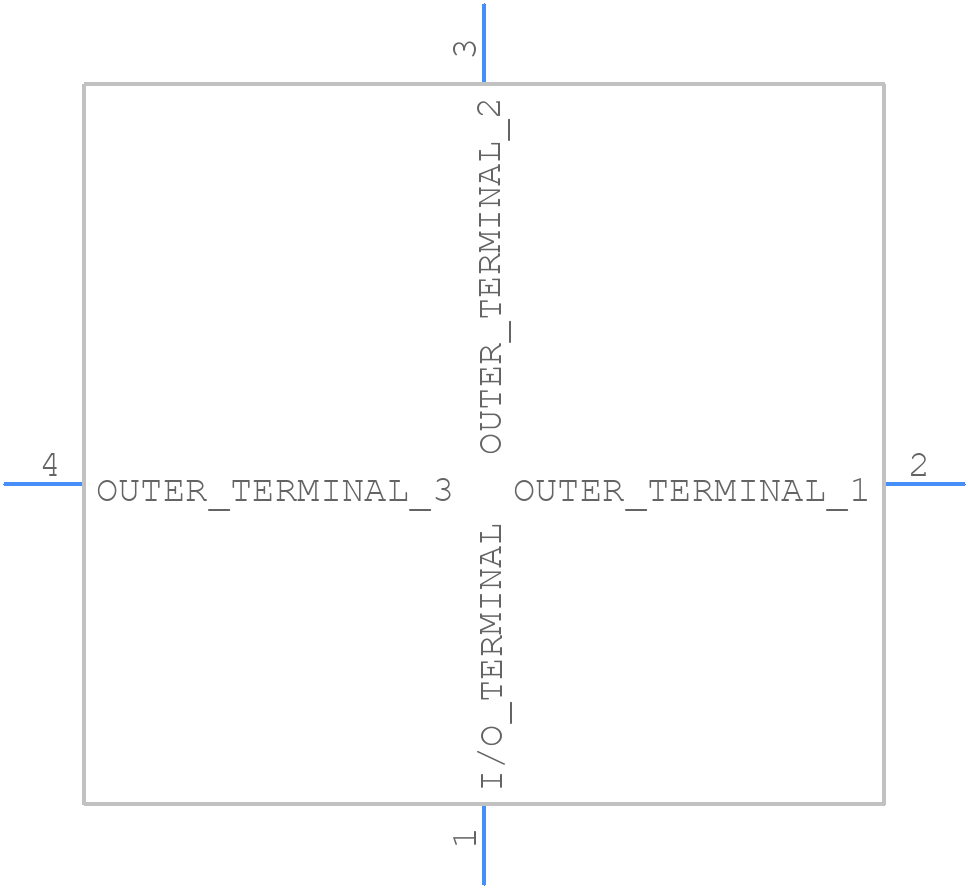

MM5829-2700RJ4 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MM5829-2700RJ4 - Murata Electronics PCB footprint - Other - Other - MM5829-2700RJ4-2
click to zoom
3D Models
MM5829-2700RJ4 - Murata Electronics - 3D model - Other - MM5829-2700RJ4-2
click to zoom

MM5829-2700RJ4 Details

  • Manufacturer Part Number:

    MM5829-2700RJ4

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    VSWR MAX AT 3 GHZ

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Gender:

    MALE

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    12 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SURFACE MOUNT

  • VSWR:

    1.3

MM5829-2700RJ4 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MM5829-2700RJ4 can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • The MM5829-2700RJ4 has a thermal resistance of 30°C/W. To handle thermal considerations, ensure good airflow, use a heat sink if necessary, and follow proper PCB design and layout guidelines to minimize thermal impedance.
  • The MM5829-2700RJ4 has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the component's performance at extreme temperatures to ensure reliability.
  • The MM5829-2700RJ4 is designed to withstand vibrations up to 10G. However, it's recommended to follow proper mounting and soldering techniques to ensure the component's reliability in high-vibration environments.
  • The MM5829-2700RJ4 meets various regulatory requirements, including RoHS and REACH. However, it's recommended to review the component's certifications and compliance documents to ensure it meets your specific application's regulatory requirements.
