MM74C922N - onsemi

MM74C922N Details

• Manufacturer Part Number:

  MM74C922N

• Part Life Cycle Code:

  Obsolete

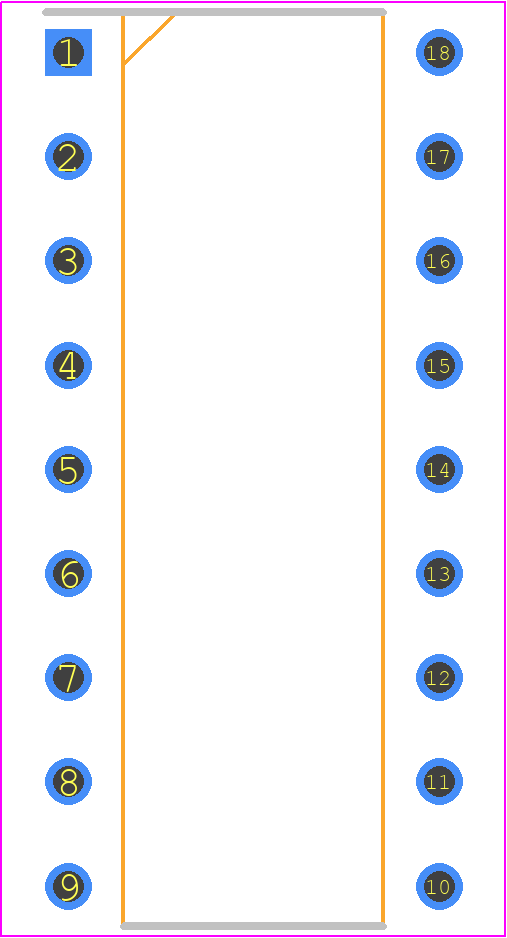

• Package Description:

  DIP-18

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Additional Feature:

  20 KEY ENCODER

• Family:

  74

• JESD-30 Code:

  R-PDIP-T18

• Length:

  22.73 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  ENCODER

• Number of Bits:

  9

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  2.6 mA

• Propagation Delay (tpd):

  150 ns

• Seated Height-Max:

  3.48 mm

• Supply Voltage-Max (Vsup):

  15 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  6.35 mm
