MM74C923WM - onsemi

Description: Encoders, Decoders, Multiplexers & Demultiplexers 20-Key Encoder

Download MM74C923WM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

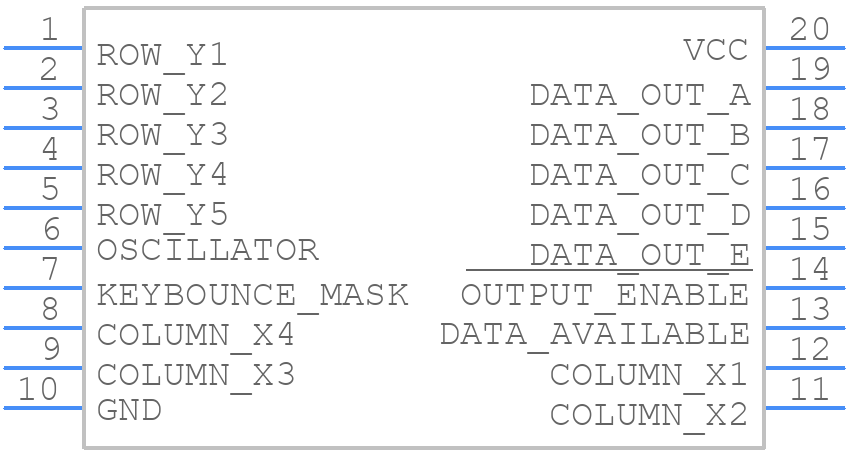

Symbol
MM74C923WM - onsemi - PCB symbol
click to zoom
PCB Footprints
MM74C923WM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - M20B (SOIC)
click to zoom
3D Models
MM74C923WM - onsemi - 3D model - Small Outline Packages - M20B (SOIC)
click to zoom

MM74C923WM Details

  • Manufacturer Part Number:

    MM74C923WM

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.5

  • Additional Feature:

    20 KEY ENCODER

  • Family:

    74

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    ENCODER

  • Number of Bits:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    2.6 mA

  • Propagation Delay (tpd):

    150 ns

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

MM74C923WM Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MM74C923WM is 4.5V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C).
  • The maximum clock frequency supported by the MM74C923WM is 10 MHz.
  • The MM74C923WM can be interfaced with a microcontroller using a standard 3-wire serial interface (SCL, SDA, and RST). The microcontroller can be used to control the MM74C923WM's registers and access its features.
  • The RST (Reset) pin on the MM74C923WM is used to reset the device to its default state. When the RST pin is pulled low, the device is reset, and all registers are cleared.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MM74C923WM Overview

Use the download button to access the MM74C923WM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM74C, or try a keyword search, such as Arithmetic Circuits
