MM74C926N - onsemi

Description: Counter Shift Registers 4-Digit Counters with Multiplexed 7-Segment Output Drivers

Download MM74C926N Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MM74C926N model

Email notifications will be applied after download.

Send part feedback

Symbol

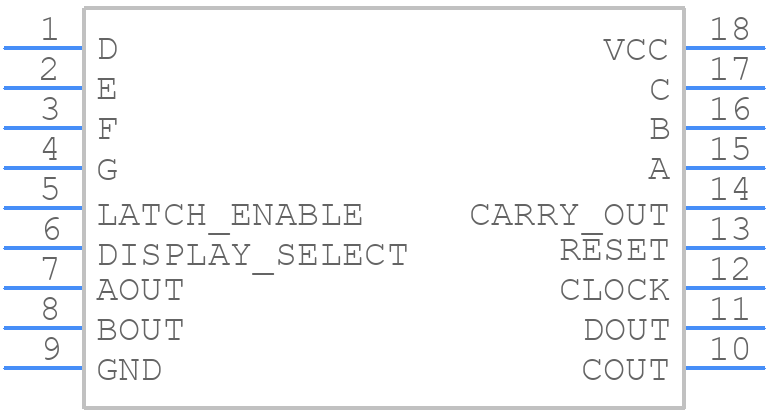

MM74C926N - onsemi - PCB symbol

PCB Footprints

MM74C926N - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N18A

3D Models

MM74C926N - onsemi - 3D model - Dual-In-Line Packages - N18A

Datasheet Download Datasheet
Stock & Prices Price & Stock for MM74C926N
Part Number MM74C926N
Manufacturer onsemi
Pin Count 18
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - N18A
Released Date May 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MM74C926N Details

Manufacturer Part Number:
MM74C926N
Manufacturer:
onsemi

Trust Checks

Community Provided

System Verified

Community Approved

MM74C926N Overview

Use the download button to access the MM74C926N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MM74C, or try a keyword search, such as Counters
