Part Image

MM74HC02MX - onsemi

Description: MM74HC02MX, Logic Gate Quad 2 Input NOR, HC, 5.2mA 2 to 6V 14-Pin SOIC

Download MM74HC02MX Model

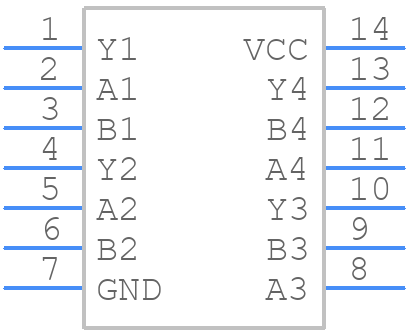

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MM74HC02MX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - M14A (SOIC)
click to zoom
3D Models
MM74HC02MX - onsemi  - 3D model - Small Outline Packages - M14A (SOIC)
click to zoom

MM74HC02MX Details

  • Manufacturer Part Number:

    MM74HC02MX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Manufacturer Package Code:

    751EF

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.35

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.6235 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    27 ns

  • Propagation Delay (tpd):

    113 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.753 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MM74HC02MX Overview

Use the download button to access the MM74HC02MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM74H, or try a keyword search, such as Gates

Parts related to MM74HC02MX

Showing 0 results

MM74HC02MX Alternates

Showing results

Image Part Number Model
Part Image SN74HC02DR Rochester Electronics LLC

NOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14

Part Image HD74HC02RP Hitachi Ltd

NOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, FP-14DN

Part Image SN74HC02DE4 Rochester Electronics LLC

NOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14

Part Image HD74HC02RP Renesas Electronics Corporation

HC/UH SERIES, QUAD 2-INPUT NOR GATE, PDSO14, FP-14DN

Part Image MC74HC02AD Rochester Electronics LLC

NOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, SOIC-14

For a full list of alternate parts for MM74HC02MX, check out Findchips.com
