The MM74HC273N can handle clock frequencies up to 25 MHz, but this may vary depending on the specific application and operating conditions.
To ensure proper power and decoupling, use a 5V power supply with a minimum of 10uF decoupling capacitor between VCC and GND, and place the capacitor as close to the device as possible.
The MM74HC273N can tolerate input voltages up to 7V, but it's recommended to keep input voltages within the recommended operating range of 4.5V to 5.5V to ensure reliable operation.
Yes, the MM74HC273N can be used in a 3.3V system, but the output voltage will be limited to 3.3V, and the device may not be able to drive as much current as it would at 5V.
The asynchronous clear (CLR) input should be tied to VCC through a pull-up resistor (e.g., 1kΩ) to ensure that it is not floating, and to prevent accidental clearing of the registers.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MM74HC273N Overview

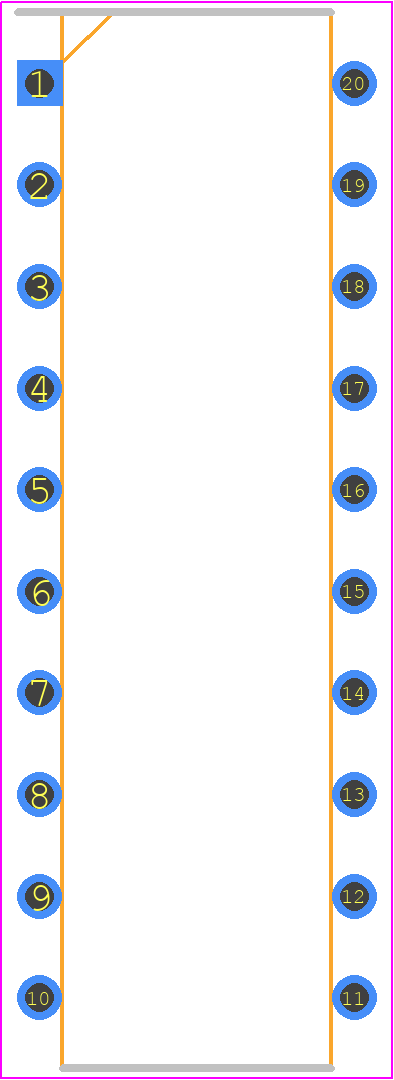

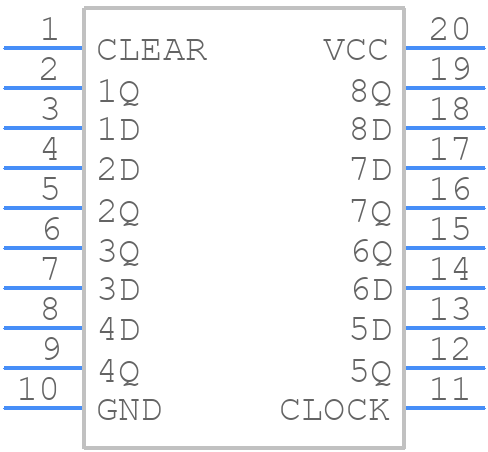

Use the download button to access the MM74HC273N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM74H,
or try a keyword search, such as FF/Latches
