- Datasheet
- Stock & Prices $ Price & Stock for MM74HC589M
- Part Number MM74HC589M
- Manufacturer onsemi
- Pin Count 16
- Part Category Undefined or Miscellaneous
- Package Category Other
- Footprint Name Other - SOIC127P600X175-16N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MM74HC589M Details
-
Manufacturer Part Number:
MM74HC589M
-
Manufacturer:
onsemi
Trust Checks
System Verified
MM74HC589M Overview

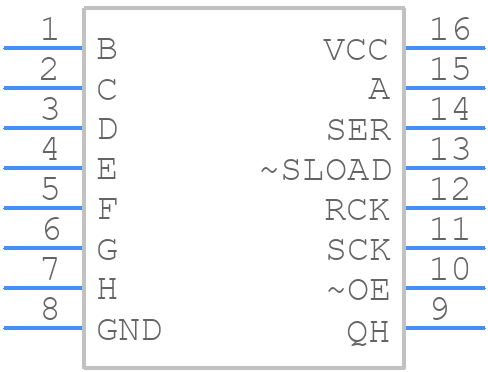

Use the download button to access the MM74HC589M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM74H,
or try a keyword search, such as Shift Registers
