Part Image

MM74HC595MX - onsemi

Description: Shift Register HS 8 Bit CMOS SOIC16

Download MM74HC595MX Model

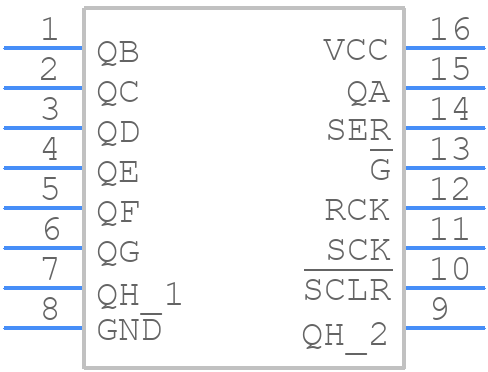

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

MM74HC595MX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC 0.150 Narrow-
click to zoom

3D Models

MM74HC595MX - onsemi  - 3D model - Small Outline Packages - 16-Lead SOIC 0.150 Narrow-
click to zoom
  • Datasheet
  • Stock & Prices $ Price & Stock for MM74HC595MX
  • Part Number MM74HC595MX
  • Manufacturer onsemi
  • Pin Count 16
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - 16-Lead SOIC 0.150 Narrow-
  • Released Date Apr 16, 2015
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

MM74HC595MX Details

  • Manufacturer Part Number:

    MM74HC595MX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP, SOP16,.25

  • Manufacturer Package Code:

    751B-05

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    32 Weeks, 4 Days

  • Manufacturer:

    onsemi

  • Risk Rank:

    1.23

  • Additional Feature:

    PARALLEL OUTPUT IS REGISTERED

  • Count Direction:

    RIGHT

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    24000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    2/6 V

  • Propagation Delay (tpd):

    367 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Shift Registers

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    30 MHz

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MM74HC595MX Overview

Use the download button to access the MM74HC595MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM74H, or try a keyword search, such as Shift Registers

Parts related to MM74HC595MX

Showing 0 results

MM74HC595MX Alternates

Showing results

Image Part Number Model
Part Image MM74HC595M onsemi

8-Bit Shift Registers with Output Latches, 48-TUBE
