The maximum clock frequency for the MM74HC595N is 25 MHz, but it can vary depending on the operating voltage and temperature.
To ensure that the output pins are in a known state during power-up, you can use an external pull-up or pull-down resistor on the OE (output enable) pin. This will ensure that the outputs are in a known state until the chip is fully powered up and configured.
The MM74HC595N can sink or source up to 25 mA per output pin, but the total current should not exceed 70 mA for the entire device.
The asynchronous reset (SRCLR) input should be tied to VCC through a resistor (e.g., 1 kΩ) to ensure that the chip is properly reset during power-up. This input should not be left floating.
The SER pin is the serial input pin that receives the data to be shifted into the shift register. It is typically connected to the Q7 output of the previous MM74HC595N device in a daisy-chain configuration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MM74HC595N Overview

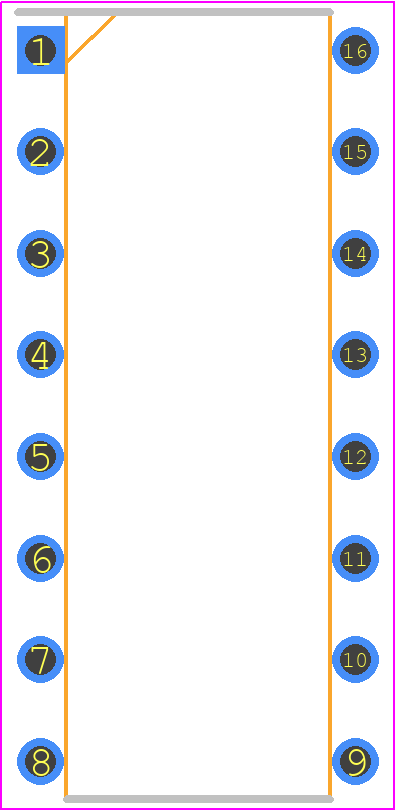

Use the download button to access the MM74HC595N schematic symbol, PCB footprint, and 3D model.
