The MM74HCT164M can handle clock frequencies up to 30 MHz, but it's recommended to check the timing specifications in the datasheet for specific frequency ranges and operating conditions.
To ensure proper power and decoupling, use a 5V power supply with a minimum of 10uF decoupling capacitor between VCC and GND, and place the capacitor as close to the device as possible. Additionally, use a 0.1uF decoupling capacitor between VCC and GND for each 10 inches of PCB trace.
The MM74HCT164M has a maximum input voltage of 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 4.5V to 5.5V to ensure reliable operation.
No, the MM74HCT164M is not designed to operate at 3.3V. It's a 5V device, and operating it at 3.3V may result in unreliable operation or damage to the device.
During power-up, the RST input should be held low for at least 10ns to ensure that the device is properly reset. After power-up, the RST input can be released, and the device will begin operating normally.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MM74HCT164M Overview

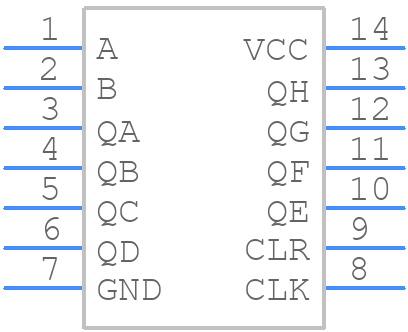

Use the download button to access the MM74HCT164M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM74H,
or try a keyword search, such as Shift Registers
