The MM74HCT164MX can handle clock frequencies up to 30 MHz.
The MM74HCT164MX requires a power supply voltage of 4.5V to 5.5V, and it is recommended to use a decoupling capacitor of 0.1uF to 1uF between VCC and GND to ensure proper power supply decoupling.
The MM74HCT164MX can tolerate input voltages up to 7V without damage, but it is recommended to keep input voltages within the recommended operating range of 0V to VCC to ensure proper operation.
The RST input should be tied to VCC through a pull-up resistor (e.g. 1kΩ) to ensure that the device is properly reset. A low-going pulse on RST will reset the device.
The propagation delay of the MM74HCT164MX is typically around 10ns to 20ns, depending on the operating conditions and load capacitance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MM74HCT164MX Overview

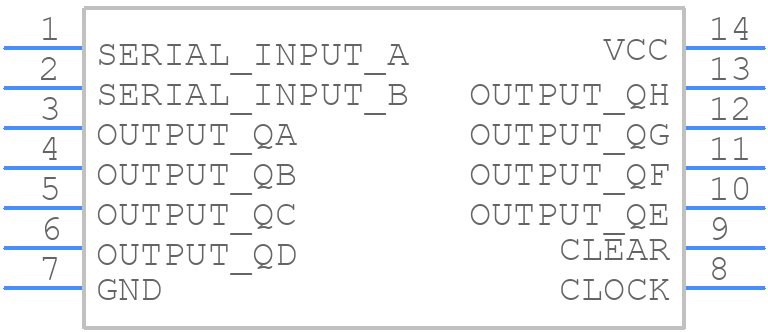

Use the download button to access the MM74HCT164MX schematic symbol, PCB footprint, and 3D model.
