MM74HCT273N - onsemi

Description: Octal D-Type Flip-Flop with Clear

Download MM74HCT273N Model

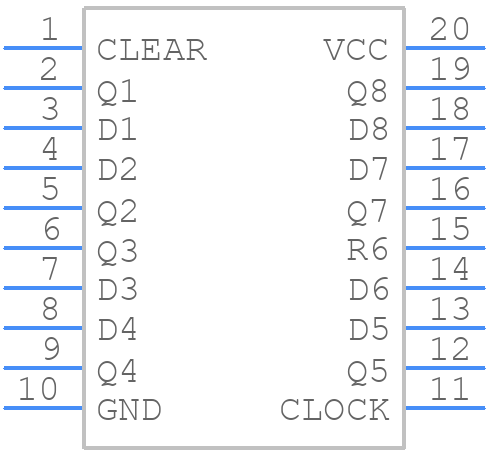

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MM74HCT273N - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N20A
click to zoom
3D Models
MM74HCT273N - onsemi  - 3D model - Dual-In-Line Packages - N20A
click to zoom

MM74HCT273N Details

  • Manufacturer Part Number:

    MM74HCT273N

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-20

  • Manufacturer Package Code:

    N20A

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-12-28

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    HCT

  • JESD-30 Code:

    R-PDIP-T20

  • Length:

    26.075 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Number of Bits:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Propagation Delay (tpd):

    46 ns

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

MM74HCT273N Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for MM74HCT273N is 4.5V to 5.5V, with a typical voltage of 5V.
  • Unused inputs of the MM74HCT273N should be tied to VCC or GND to prevent floating inputs and ensure proper device operation.
  • The maximum clock frequency that the MM74HCT273N can handle is typically around 30-40 MHz, but this can vary depending on the specific application and operating conditions.
  • While the MM74HCT273N is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the device's performance and noise immunity may be degraded, and the output voltage levels may not be compatible with 3.3V logic.
  • To ensure proper operation, the MM74HCT273N should be powered from a clean, low-noise power supply, and decoupling capacitors (e.g., 0.1uF) should be placed close to the device's power pins to filter out noise and reduce electromagnetic interference (EMI).
