MM74HCT74M - onsemi

Description: Low input current: 1 µA maximum; Fanout of 10 LS-TTL loads; Low quiescent current: 40 µA maximum (74HCT Series); Typical propagation delay: 20 ns; Meta-stable hardened

Download MM74HCT74M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

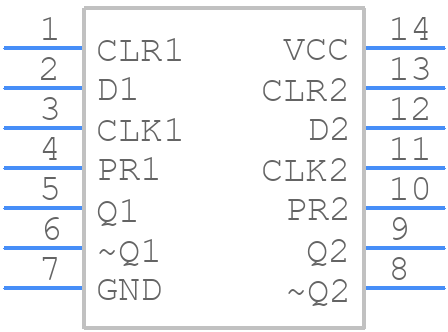

MM74HCT74M - onsemi - PCB symbol
click to zoom
PCB Footprints
MM74HCT74M - onsemi PCB footprint - Other - Other - SOIC127P600X175-14N
click to zoom
3D Models
MM74HCT74M - onsemi - 3D model - Other - SOIC127P600X175-14N
click to zoom

MM74HCT74M Details

  • Manufacturer Part Number:

    MM74HCT74M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.45

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.625 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    21000000 Hz

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    44 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.753 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    21 MHz

MM74HCT74M Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MM74HCT74M is 4.5V to 5.5V.
  • To ensure proper power supply, connect VCC to a stable 5V power source and GND to a reliable ground connection. Decouple the power supply with a 0.1uF capacitor to reduce noise.
  • The MM74HCT74M can handle clock frequencies up to 30MHz.
  • The MM74HCT74M has an asynchronous reset input (CLR) that can be used to reset the flip-flops. Asserting the CLR input low will reset the flip-flops.
  • The propagation delay of the MM74HCT74M is typically around 10ns to 15ns, depending on the operating voltage and temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MM74HCT74M Overview

Use the download button to access the MM74HCT74M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM74H, or try a keyword search, such as FF/Latches
