MM74HCT74MTCX - onsemi

Description: Low input current: 1 µA maximum; Fanout of 10 LS-TTL loads; Low quiescent current: 40 µA maximum (74HCT Series); Typical propagation delay: 20 ns; Meta-stable hardened

Download MM74HCT74MTCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

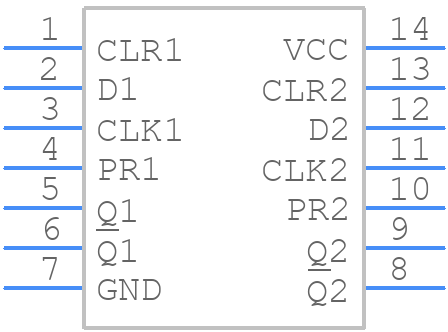

MM74HCT74MTCX - onsemi - PCB symbol
click to zoom
PCB Footprints
MM74HCT74MTCX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C
click to zoom
3D Models
MM74HCT74MTCX - onsemi - 3D model - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C
click to zoom

MM74HCT74MTCX Details

  • Manufacturer Part Number:

    MM74HCT74MTCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14 WB

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.45

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    21000000 Hz

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    44 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    21 MHz

MM74HCT74MTCX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for MM74HCT74MTCX is 4.5V to 5.5V, with a typical voltage of 5V.
  • It is recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals to prevent any unwanted latch-up or damage to the device.
  • The maximum clock frequency that MM74HCT74MTCX can handle is 30 MHz, but it depends on the specific application and operating conditions.
  • It is recommended to use a 0.1uF ceramic capacitor between the VCC pin and the GND pin, and to place it as close as possible to the device to ensure proper decoupling and noise reduction.
  • The maximum input voltage that MM74HCT74MTCX can handle is 5.5V, but it is recommended to keep the input voltage within the recommended operating voltage range of 4.5V to 5.5V to ensure proper operation.
