MM8130-2600RB8 - Murata Electronics

Description: SWF Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder , 30V , 6 GHz , -40°C ~ 85°C

Download MM8130-2600RB8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

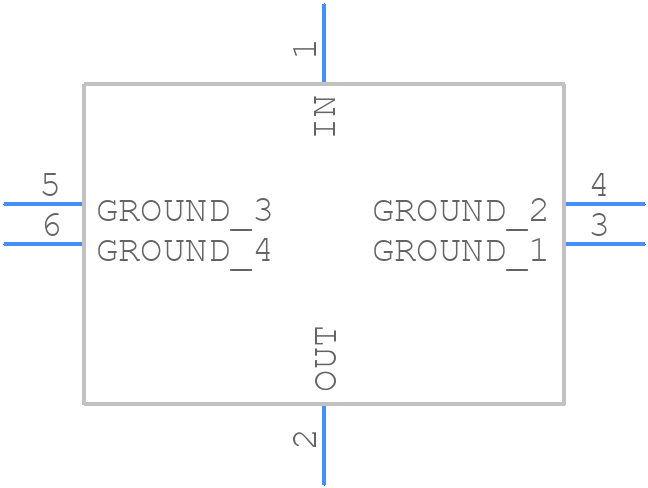

MM8130-2600RB8 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MM8130-2600RB8 - Murata Electronics PCB footprint - Other - Other - MM8130-2600RB8-4
click to zoom
3D Models
MM8130-2600RB8 - Murata Electronics - 3D model - Other - MM8130-2600RB8-4
click to zoom

MM8130-2600RB8 Details

  • Manufacturer Part Number:

    MM8130-2600RB8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Additional Feature:

    VSWR MAX AT 3 GHZ

  • Body Breadth:

    0.098 inch

  • Body Depth:

    0.055 inch

  • Body Diameter:

    0.083 inch

  • Body Length:

    0.098 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    70 mΩ

  • Contact Style:

    COAX

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    450VAC V

  • Durability:

    100 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    500000000 Ω

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Frequency-Max:

    6 GHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    1

  • VSWR:

    1.2

MM8130-2600RB8 Frequently Asked Questions (FAQs)

  • Murata recommends a 4-layer PCB with a solid ground plane and a separate power plane for the module. The PCB should also have a minimum of 10 mils of clearance around the module to ensure proper heat dissipation.
  • Murata recommends using a reflow soldering process with a peak temperature of 240°C to 250°C. The module should be placed on the PCB using a pick-and-place machine, and the solder paste should be applied using a stencil with a thickness of 0.125 mm to 0.15 mm.
  • The MM8130-2600RB8 is rated for operation from -40°C to 85°C, but it can be derated for operation up to 105°C with reduced performance.
  • Murata recommends using a logic analyzer or oscilloscope to monitor the module's output signals. The module's datasheet also provides a troubleshooting guide with common issues and solutions.
  • The MM8130-2600RB8 is designed for use in industrial and commercial applications, but it can be used in harsh environments with proper protection. Murata recommends using a conformal coating and sealing the module in a protective enclosure to protect it from moisture and vibration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MM8130-2600RB8 Overview

Use the download button to access the MM8130-2600RB8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM813, or try a keyword search, such as Other RF Connectors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
