MM8930-2620RJ4 - Murata Electronics

Description: RF Connectors / Coaxial Connectors SWH CONN FEMALE SOCKET 50OHM

Download MM8930-2620RJ4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

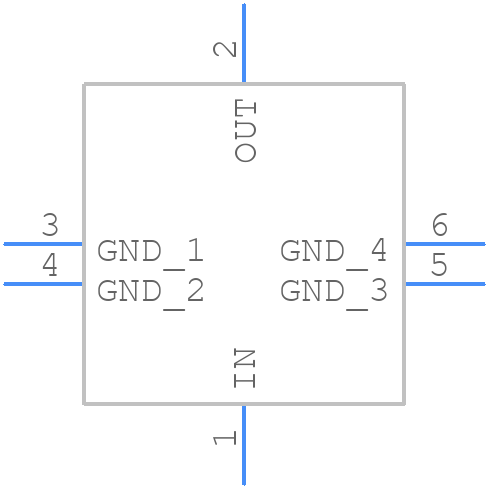

MM8930-2620RJ4 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MM8930-2620RJ4 - Murata Electronics PCB footprint - Other - Other - 1.6mm x 1.6mm x 0.7mm
click to zoom
3D Models
MM8930-2620RJ4 - Murata Electronics - 3D model - Other - 1.6mm x 1.6mm x 0.7mm
click to zoom

MM8930-2620RJ4 Details

  • Manufacturer Part Number:

    MM8930-2620RJ4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Gender:

    FEMALE

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Loss:

    0.2 dB

  • MIL Conformance:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    6 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SURFACE MOUNT

  • VSWR:

    1.3

MM8930-2620RJ4 Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and module performance.
  • Murata provides antenna design guidelines and recommendations in their application notes. It's crucial to follow these guidelines to ensure optimal antenna performance and minimize electromagnetic interference (EMI).
  • The MM8930-2620RJ4 has a maximum operating temperature of 85°C. Ensure proper thermal management by providing adequate heat dissipation, using thermal pads or heat sinks, and following Murata's thermal management guidelines.
  • Configure the module's power modes, transmission power, and data rates according to your application's requirements. Refer to the datasheet and application notes for power-saving techniques and optimization guidelines.
  • Follow Murata's EMI and EMC guidelines to minimize electromagnetic interference. Ensure proper shielding, grounding, and filtering to meet regulatory requirements and prevent interference with other devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MM8930-2620RJ4 Overview

Use the download button to access the MM8930-2620RJ4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MM893, or try a keyword search, such as Other RF Connectors
