Technical Content
Part Image

MMA8452QR1 - NXP

Description: NXP - MMA8452QR1 - ACCELEROMETER, 1024/512/256COUNTS/G, QFN

Download MMA8452QR1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

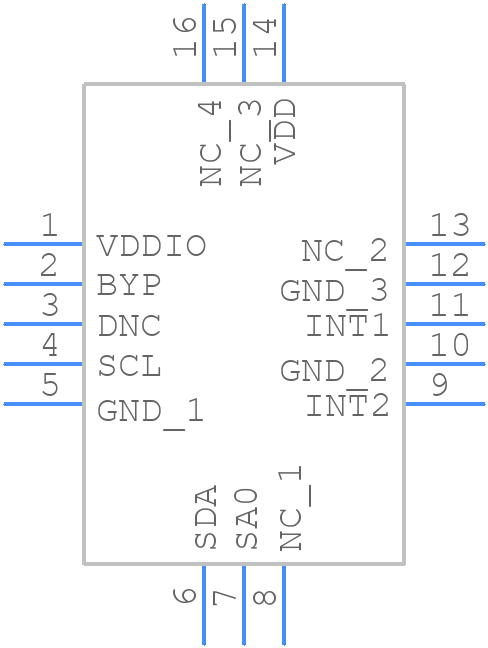

Symbol
MMA8452QR1 - NXP - PCB symbol
click to zoom
PCB Footprints
MMA8452QR1 - NXP PCB footprint - Other - Other - MMA8452QR1-3
click to zoom
3D Models
MMA8452QR1 - NXP - 3D model - Other - MMA8452QR1-3
click to zoom

MMA8452QR1 Details

  • Manufacturer Part Number:

    MMA8452QR1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.95 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MMA8452QR1 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • The interrupt signals (INT1 and INT2) are active-low and open-drain. You should use an external pull-up resistor to connect them to a microcontroller or other logic device.
  • The SELFTEST pin is used to perform a self-test of the accelerometer's internal circuitry. When set high, the device performs a self-test and reports the result in the STATUS register.
  • The 14-bit acceleration data is represented as a signed integer, with a sensitivity of 1 LSB = 0.061 mg. To convert to units of g, multiply the 14-bit value by 0.061 mg/LSB and divide by 1000 to get g.
  • Keep the device away from high-current carrying traces and components, and avoid running sensitive analog signals near the device. Use a solid ground plane and decouple the power supplies with capacitors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MMA8452QR1 Overview

Use the download button to access the MMA8452QR1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMA84, or try a keyword search, such as Other Signal Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
