MMAD1103E3/TR13 - Microsemi Corporation

Description: Switching Diode Array Steering Diode TVS ArrayTM

Download MMAD1103E3/TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

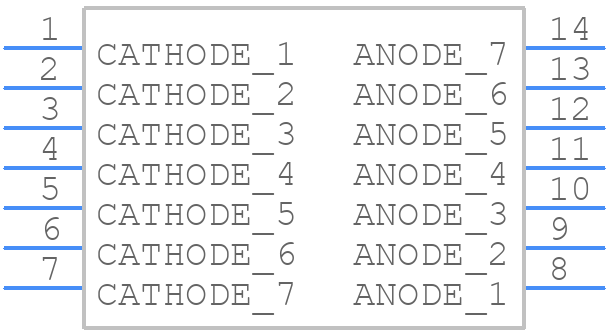

MMAD1103E3/TR13 - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints
MMAD1103E3/TR13 - Microsemi Corporation PCB footprint - Small Outline Packages - Small Outline Packages - 14-PIN SOIC
click to zoom
3D Models
MMAD1103E3/TR13 - Microsemi Corporation - 3D model - Small Outline Packages - 14-PIN SOIC
click to zoom

MMAD1103E3/TR13 Details

  • Manufacturer Part Number:

    MMAD1103E3/TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, SOIC-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Min:

    90 V

  • Configuration:

    COMPLEX

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G14

  • Number of Elements:

    16

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    1.5 W

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

MMAD1103E3/TR13 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for MMAD1103E3/TR13 is -55°C to 125°C.
  • To ensure reliability, follow the recommended storage and handling procedures, and ensure that the device is operated within the specified temperature and voltage ranges. Additionally, perform thorough testing and validation to ensure the device meets the required specifications.
  • The MMAD1103E3/TR13 is designed to meet the radiation hardness assurance (RHA) levels of MIL-PRF-38535, which includes total dose irradiation, neutron irradiation, and single event effects.
  • Yes, the MMAD1103E3/TR13 can be used in non-space or non-aerospace applications, but it's essential to ensure that the device is operated within the specified temperature and voltage ranges, and that the application meets the required reliability and performance specifications.
  • The typical lead time for MMAD1103E3/TR13 can vary depending on the quantity and availability. It's recommended to check with the manufacturer or authorized distributors for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MMAD1103E3/TR13 Overview

Use the download button to access the MMAD1103E3/TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMAD1, or try a keyword search, such as Transient Suppressors
