- Part Number MMBZ27VCQ-TP
- Manufacturer MCC
- Pin Count 3
- Part Category Diode ESD (Uni-directional)
- Package Category SOT23 (3-Pin)
- Footprint Name SOT23 (3-Pin) - SOT-23
- Released Date Sep 19, 2026
- Last Modified Date Aug 14, 2026 5:26 PM UTC
- Pinout / Pin List Click Here (Member Only)
MMBZ27VCQ-TP Details
-
Manufacturer Part Number:
MMBZ27VCQ-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Manufacturer:
Micro Commercial Components
-
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MMBZ27VCQ-TP Overview

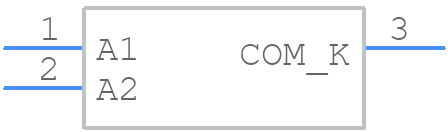

Use the download button to access the MMBZ27VCQ-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMBZ2,
or try a keyword search, such as Transient Suppressors
