MMC34160PJ - MEMSIC

Description: Board Mount Hall Effect/Magnetic Sensors +/- 16g Ultra Small, Low Noise 3 Axis Magnetic Sensor

Download MMC34160PJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

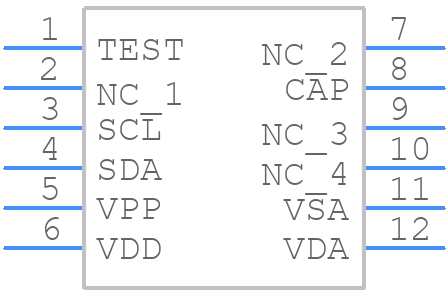

MMC34160PJ - MEMSIC - PCB symbol
click to zoom
PCB Footprints
MMC34160PJ - MEMSIC PCB footprint - Other - Other - MMC34160PJ-1
click to zoom
3D Models
MMC34160PJ - MEMSIC - 3D model - Other - MMC34160PJ-1
click to zoom

MMC34160PJ Details

  • Manufacturer Part Number:

    MMC34160PJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    BGA-12

  • Manufacturer:

    Memsic Inc

  • Body Breadth:

    1.6 mm

  • Body Height:

    0.72 mm

  • Body Length or Diameter:

    1.6 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Current-Max:

    0.14 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Range:

    0.4V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MMC34160PJ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MMC34160PJ should ensure that the sensitive analog signals are kept away from noisy digital signals. A 4-layer PCB with a dedicated ground plane is recommended. The device should be placed near the center of the board, and the analog and digital grounds should be separated.
  • The MMC34160PJ requires a one-time calibration process to set the sensitivity and offset of the device. This can be done by applying a known magnetic field to the device and measuring the output. The calibration process typically involves applying a series of known magnetic fields and recording the output values.
  • The MMC34160PJ can handle magnetic fields up to ±12 Gauss. Exceeding this limit may cause the device to saturate and produce inaccurate readings.
  • The MMC34160PJ can be interfaced with a microcontroller using a standard I2C or SPI interface. The device requires a 3.3V power supply and a clock signal. The microcontroller can read the magnetic field data from the device using the I2C or SPI protocol.
  • The typical power consumption of the MMC34160PJ is around 20mA at 3.3V. However, this can vary depending on the operating mode and the frequency of the clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MMC34160PJ Overview

Use the download button to access the MMC34160PJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMC34, or try a keyword search, such as Magnetic Field Sensors
