MMC3630KJ - MEMSIC

Description: Board Mount Hall Effect/Magnetic Sensors High Performance, Ultra-small, 3-axis AMR Magnetic Sensor

Download MMC3630KJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

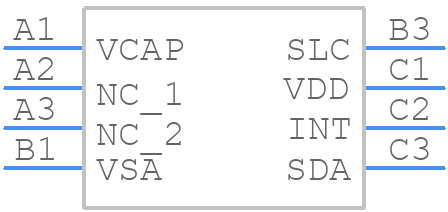

MMC3630KJ - MEMSIC - PCB symbol
click to zoom
PCB Footprints
MMC3630KJ - MEMSIC PCB footprint - BGA - BGA - Memsic
click to zoom
3D Models
MMC3630KJ - MEMSIC - 3D model - BGA - Memsic
click to zoom

MMC3630KJ Details

  • Manufacturer Part Number:

    MMC3630KJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    BGA-8

  • Manufacturer:

    Memsic Inc

  • Body Breadth:

    1.2 mm

  • Body Height:

    0.64 mm

  • Body Length or Diameter:

    1.2 mm

  • Housing:

    PLASTIC

  • Magnetic Field Range-Max:

    3 mT

  • Magnetic Field Range-Min:

    -3 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Range:

    0.36-1.44V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MMC3630KJ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD first, followed by VLOGIC, and then the clock signal. This ensures proper initialization of the device.
  • The self-test function is enabled by setting the ST bit in the CTRL_REG1 register. During self-test, the device generates a known acceleration signal, which can be used to verify the sensor's operation.
  • Reserved bits should be written as 0 and ignored when reading. They are reserved for future use and may be used for new features or functionality in future revisions of the device.
  • The acceleration values can be calculated by multiplying the raw data output by the sensitivity scale factor (typically 0.9766 mg/LSB) and dividing by the gain setting (e.g., 2, 4, or 8).
  • The maximum frequency of operation for the MMC3630KJ is 1.5 kHz for the acceleration data output and 10 kHz for the temperature data output.
