MMC5883MA - MEMSIC

Description: Board Mount Hall Effect / Magnetic Sensors AMR Magnetic Sensor 3 Axis

Download MMC5883MA Model

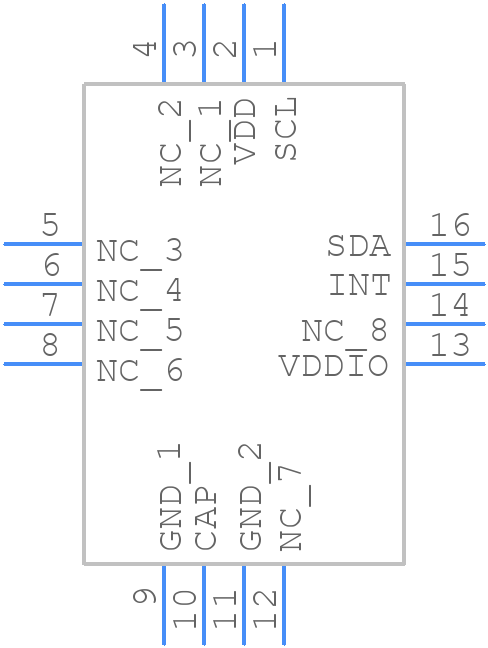

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MMC5883MA - MEMSIC PCB footprint - Other - Other - MEMSIC_LGA-16
click to zoom
3D Models
MMC5883MA - MEMSIC  - 3D model - Other - MEMSIC_LGA-16
click to zoom

MMC5883MA Details

  • Manufacturer Part Number:

    MMC5883MA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    LGA-16

  • Manufacturer:

    Memsic Inc

  • Additional Feature:

    IT HAVE SENSITIVITY OF PLUS OR MINUS 5 PERCENTAGE

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.12 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Range:

    0.36-1.44V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.16 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MMC5883MA Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD first, followed by VLOGIC, and then configure the device. This ensures proper initialization and prevents damage to the device.
  • The self-test feature is enabled by setting the ST bit in the CTRL_REG1 register. During self-test, the device generates a known magnetic field internally, and the output values can be used to verify the device's operation. Note that self-test mode should not be used during normal operation.
  • The SET and RESET pins are used to reset the device and set the magnetic sensor to its default state. SET pin is used to set the magnetic sensor to its default state, while the RESET pin is used to reset the device. These pins should be connected to a 10 kΩ pull-up resistor to VLOGIC and should not be left floating.
  • The output data from the MMC5883MA is in 2's complement format, with the most significant bit (MSB) representing the sign of the measurement. The output values are in units of gauss (G) and can be scaled using the gain settings in the CTRL_REG2 register.
  • The MMC5883MA should be placed away from high-current carrying traces and components, and the PCB layout should be designed to minimize electromagnetic interference (EMI). A ground plane under the device is recommended to reduce noise and improve performance.
