MMCX7-J-P-HF-RA-TH1 - SAMTEC

Description: MMCX7 Connector Jack, Female Socket 75 Ohms Through Hole, Right Angle Solder

Download MMCX7-J-P-HF-RA-TH1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

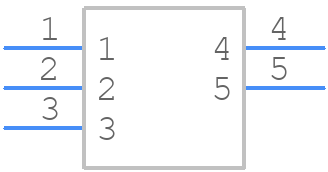

MMCX7-J-P-HF-RA-TH1 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

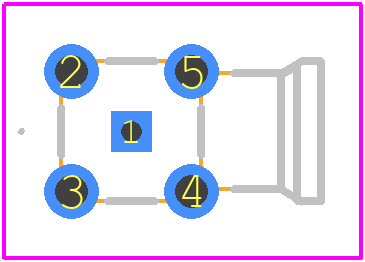

MMCX7-J-P-HF-RA-TH1 - SAMTEC PCB footprint - Other - Other - MMCX7-J-P-HF-RA-TH1-1
click to zoom
3D Models
MMCX7-J-P-HF-RA-TH1 - SAMTEC - 3D model - Other - MMCX7-J-P-HF-RA-TH1-1
click to zoom

MMCX7-J-P-HF-RA-TH1 Details

  • Manufacturer Part Number:

    MMCX7-J-P-HF-RA-TH1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Body Breadth:

    0.181 inch

  • Body Length:

    0.138 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF MMCX CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    COAX

  • Dielectric Withstanding Voltage:

    700VAC V

  • Insulation Resistance:

    600000000 Ω

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Frequency-Max:

    6 GHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Shell Material:

    BRASS

  • Terminal Length:

    0.11 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

MMCX7-J-P-HF-RA-TH1 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the MMCX7-J-P-HF-RA-TH1 is to mate the plug first, followed by the jack. This ensures proper alignment and minimizes the risk of damage to the connector.
  • Yes, the MMCX7-J-P-HF-RA-TH1 is designed to withstand high-vibration environments. The TH1 suffix indicates that it meets the requirements for high-reliability, high-vibration applications.
  • The maximum operating temperature for the MMCX7-J-P-HF-RA-TH1 is 125°C (257°F). However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
  • Yes, the MMCX7-J-P-HF-RA-TH1 is designed for automated assembly processes. The connector's design and packaging are optimized for pick-and-place machines and other automated assembly equipment.
  • The typical lead time for the MMCX7-J-P-HF-RA-TH1 varies depending on the quantity and availability. However, Samtec Inc typically quotes a lead time of 2-4 weeks for standard orders.
