MMIX1H60N150V1 - LITTELFUSE

Description: 1500V MOS Gated Thyristor w/ Anti-Parallel Diode

Download MMIX1H60N150V1 Model

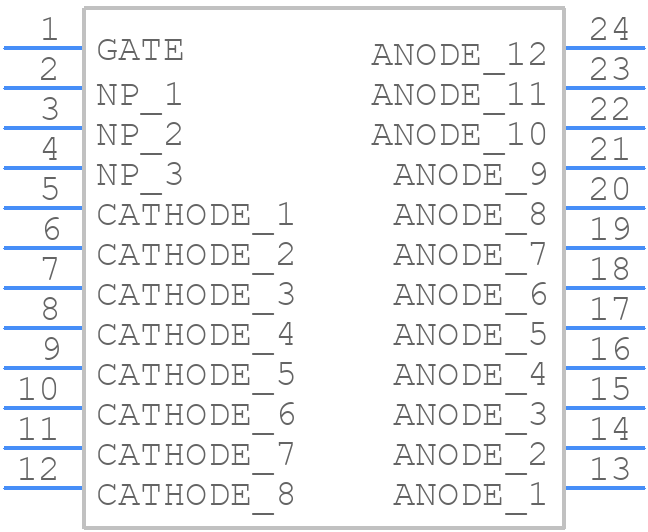

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

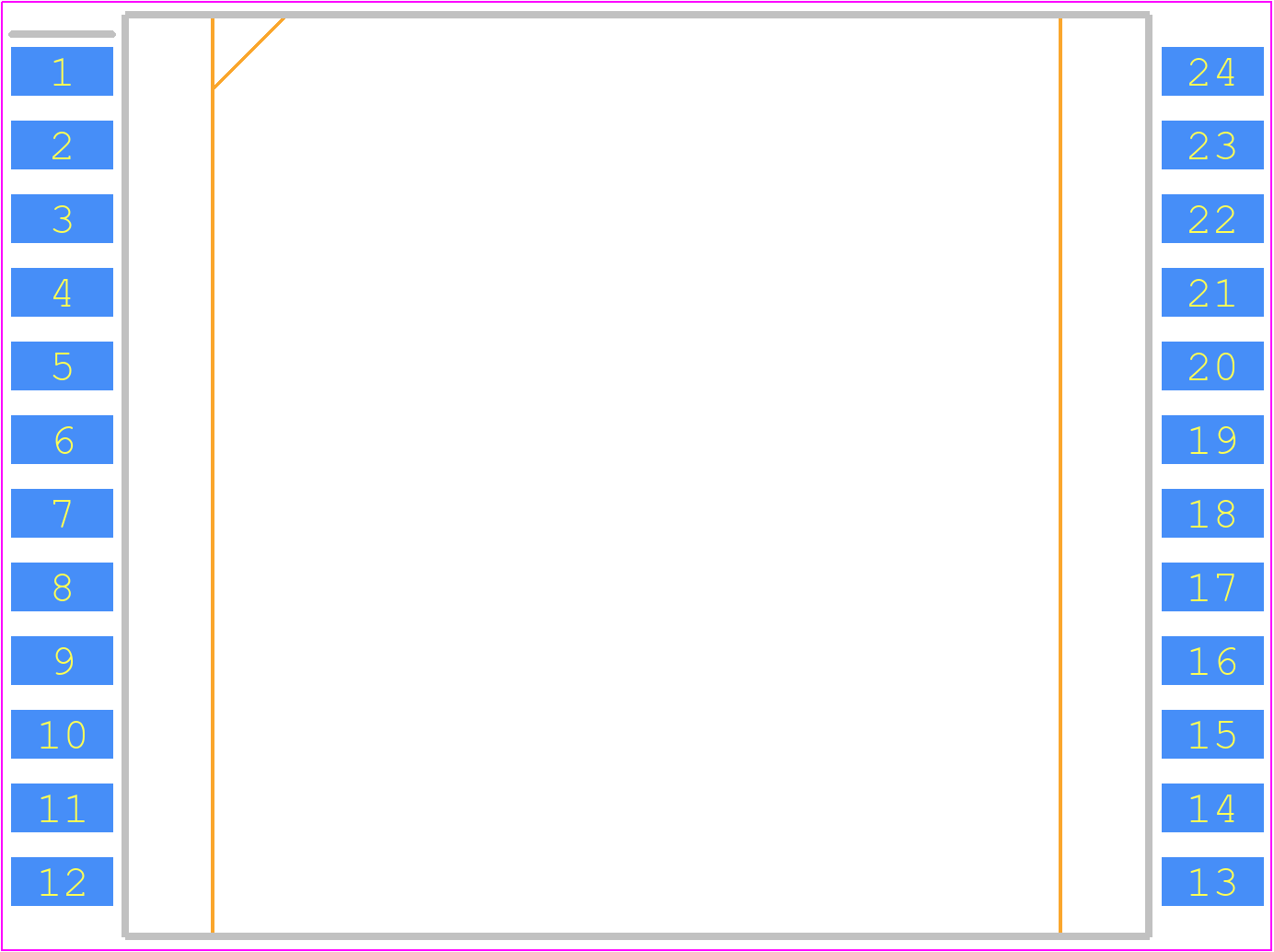

PCB Footprints
MMIX1H60N150V1 - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - MMIX1H60N150V1
click to zoom
3D Models
MMIX1H60N150V1 - LITTELFUSE  - 3D model - Small Outline Packages - MMIX1H60N150V1
click to zoom

MMIX1H60N150V1 Details

  • Manufacturer Part Number:

    MMIX1H60N150V1

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    3

  • Trigger Device Type:

    SCR
