- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MML20242HT1
- Part Number MML20242HT1
- Manufacturer NXP
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 12 lead qfn
- Released Date Mar 2, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MML20242HT1 Details
-
Manufacturer Part Number:
MML20242HT1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
5A991
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
2 Days
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
JESD-609 Code:
e3
-
Mounting Feature:
SURFACE MOUNT
-
Number of Functions:
1
MML20242HT1 Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout and thermal management guide in their application note AN11542, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
-
The input capacitor selection depends on the input voltage, current, and frequency. NXP recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the input voltage. The capacitor should be placed as close as possible to the input pins of the MML20242HT1.
-
The MML20242HT1 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
-
Yes, the MML20242HT1 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow NXP's guidelines for qualification, testing, and validation to ensure the device meets the specific requirements of the application.
-
NXP provides a troubleshooting guide in their application note AN11543, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and thermal imaging cameras to diagnose and debug issues related to the MML20242HT1.
Trust Checks
Community Provided
System Verified
Community Approved
MML20242HT1 Overview

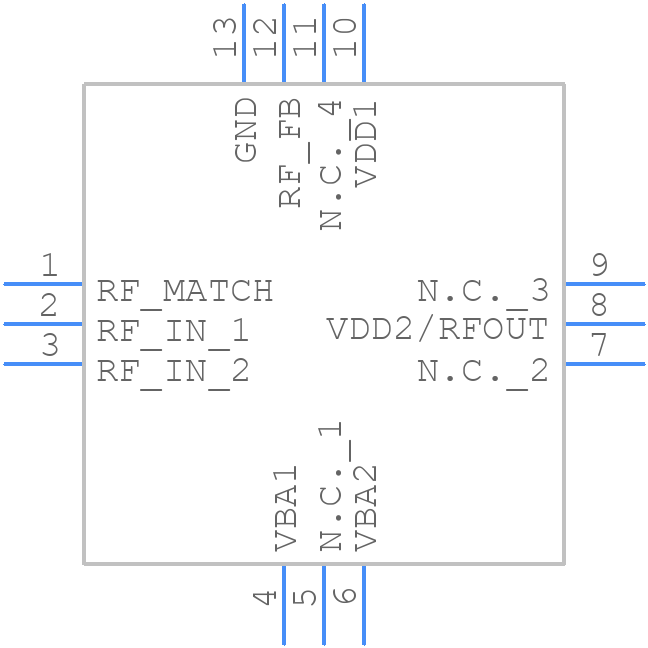

Use the download button to access the MML20242HT1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MML20,
or try a keyword search, such as RF/Microwave Amplifiers
