A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
The SOA is typically defined by the device's voltage, current, and power ratings. For the MMPQ2907A, the SOA is limited by the maximum voltage rating of 28V, maximum current rating of 2.5A, and maximum power rating of 20W.
Use ESD protection devices such as TVS diodes or ESD suppressors on the input and output pins. Also, follow proper handling and storage procedures to prevent ESD damage.
Store the devices in their original packaging or in a dry, ESD-protected environment. Handle the devices by the body, not the leads, and avoid bending or flexing the leads.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MMPQ2907A Overview

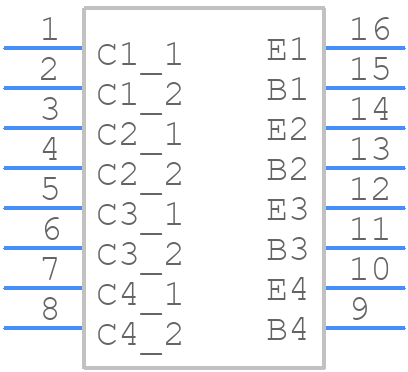

Use the download button to access the MMPQ2907A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMPQ2,
or try a keyword search, such as Small Signal Bipolar Transistors
