MMS-114-02-L-SH-TR - SAMTEC

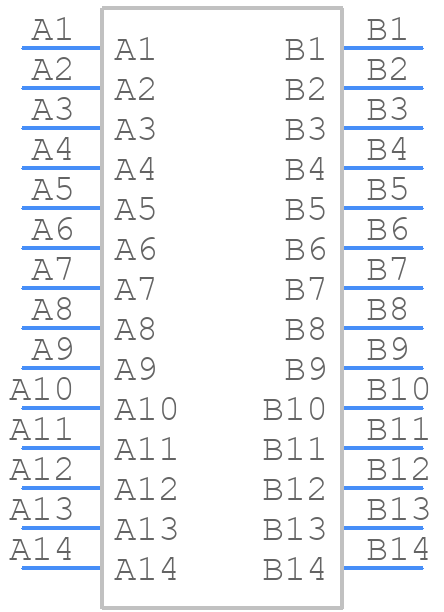

MMS-114-02-L-SH-TR Details

• Manufacturer Part Number:

  MMS-114-02-L-SH-TR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Direct Group:

  CH40040802149030800100310101YYYYY02YY07080202

• Similar Group:

  CH40040802149030800100310101YYYYY02YY07

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  12

• Additional Feature:

  MOUNT; HORIZ TAPE & REEL

• Board Mounting Option:

  HOLE .031-.047

• Body Breadth:

  0.079 inch

• Body Depth:

  0.175 inch

• Body Length:

  1.128 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  1.0286 N

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.079 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  6.477 mm

• Packing Method:

  TR

• Plating Thickness:

  10u inch

• Polarization Key:

  POLAR PIN POSITION

• Rated Current (Signal):

  3.9 A

• Reference Standard:

  CSA; UL

• Terminal Pitch:

  2 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  14

• Withdrawl Force-Min:

  .6116 N
