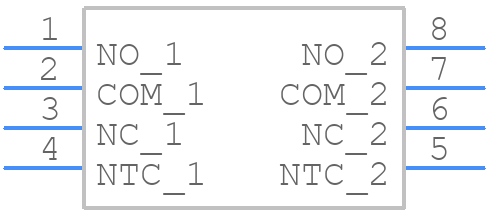

MMS228T - KNITTER-SWITCH

MMS228T Details

• Manufacturer Part Number:

  MMS228T

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Manufacturer:

  knitter-switch

• Actuator Color:

  BLUE

• Actuator Length:

  0.079 inch

• Actuator Material:

  POLYAMIDE

• Actuator Type:

  SLIDE

• Body Breadth:

  3.6 mm

• Body Color:

  BLACK

• Body Height:

  3.5 mm

• Body Length or Diameter:

  13 mm

• Center Contact Plating:

  SILVER

• Contact Current(DC)-Max:

  0.3 A

• Contact (DC) Max Rating R Load:

  .3A@6VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.07 mΩ

• Contact Voltage(DC)-Max:

  6 V

• Dielectric Withstand Volts:

  500VAC V

• End Contact Plating:

  SILVER

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Number of Positions:

  2

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -10 °C

• Packing Method:

  TAPE AND REEL

• Solderability:

  REFLOW

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  SLIDE SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
