MMS238T footprint, schematic symbol and 3D model by KNITTER-SWITCH

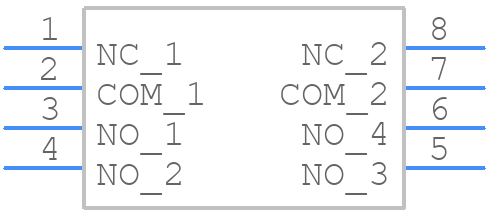

Symbol

PCB Footprints

3D Models

MMS238T Details

The recommended operating temperature range for the MMS238T is -40°C to 125°C, although it can withstand storage temperatures from -55°C to 150°C.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a soldering flux. The recommended soldering time is 3-5 seconds per pin.
The maximum allowable voltage for the MMS238T is 1.5 times the rated voltage, but it's recommended to operate within the rated voltage to ensure reliability and longevity.
Handle the MMS238T by the package body, avoiding touching the pins or electrical components. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
Use a soft brush or a lint-free cloth to gently remove any debris or contaminants. Avoid using harsh chemicals, ultrasonic cleaning, or high-pressure washing, as they can damage the device.

Expert Contribution

System Verified

Community Approved

Use the download button to access the MMS238T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MMS23, or try a keyword search, such as DIP Switches
