MMS42 - Apem

Description: MICRO-MINIATURE SLIDE SWITCH ROHS COMPLIANT: YES

Download MMS42 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

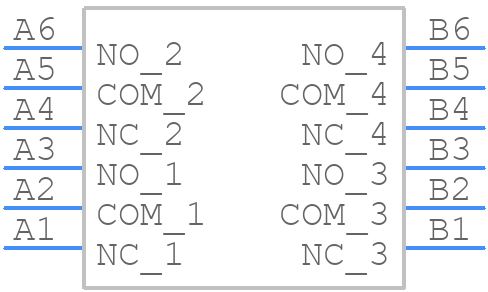

MMS42 - Apem - PCB symbol
click to zoom
PCB Footprints
MMS42 - Apem PCB footprint - Other - Other - MMS42-1
click to zoom
3D Models
MMS42 - Apem - 3D model - Other - MMS42-1
click to zoom

MMS42 Details

  • Manufacturer Part Number:

    MMS42

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    APEM Inc

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    7 mm

  • Body Height:

    5.5 mm

  • Body Length or Diameter:

    16 mm

  • Contact Current(DC)-Max:

    0.3 A

  • Contact (DC) Max Rating R Load:

    .3A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    10000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    2

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    4PDT

  • Switch Type:

    SLIDE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER
