MMT371A3B5 - Metz Connect

Description: METZ CONNECT - MMT371A3B5 - Sensor Connector, M12, Receptacle, 8 Contacts, PCB Socket, Straight PCB Mount

Download MMT371A3B5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MMT371A3B5 - Metz Connect - PCB symbol
click to zoom
PCB Footprints

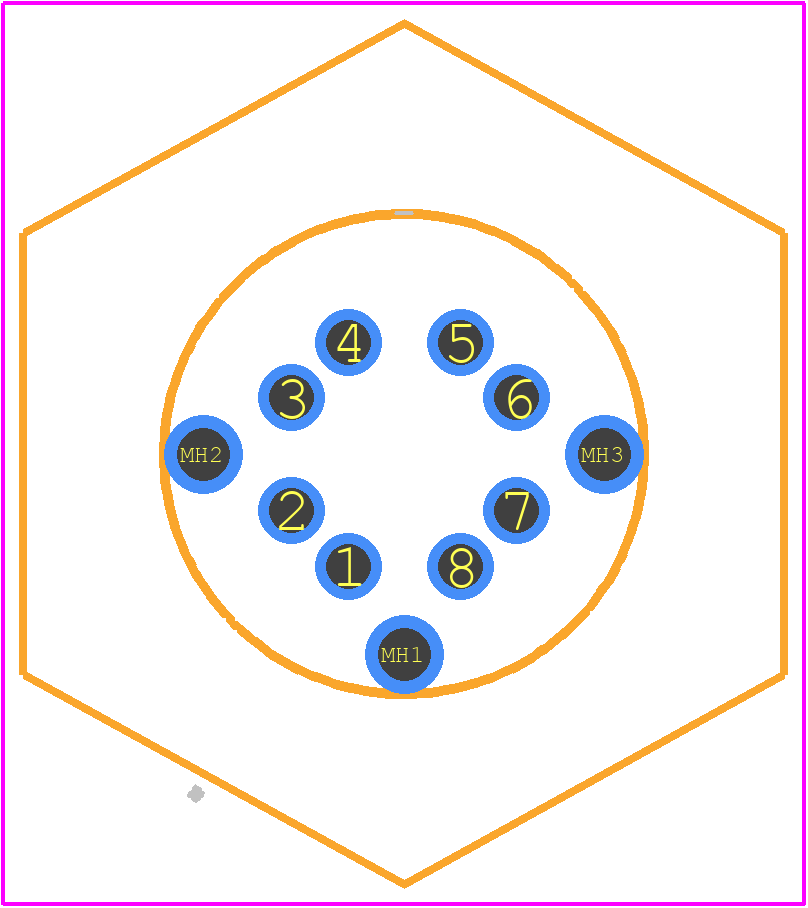

MMT371A3B5 - Metz Connect PCB footprint - Other - Other - MMT371A3B5-4
click to zoom
3D Models
MMT371A3B5 - Metz Connect - 3D model - Other - MMT371A3B5-4
click to zoom

MMT371A3B5 Details

  • Manufacturer Part Number:

    MMT371A3B5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    METZ CONNECT USA

  • Connector Type:

    CIRCULAR CONNECTOR

MMT371A3B5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the datasheet or contact METZ CONNECT USA for specific guidance.
  • Yes, the MMT371A3B5 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • Yes, the MMT371A3B5 is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for 10 seconds.
  • The MMT371A3B5 operates within a temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • The MMT371A3B5 has a moisture sensitivity level (MSL) of 1, indicating it can withstand humid or wet environments, but it's essential to follow proper handling and storage procedures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MMT371A3B5 Overview

Use the download button to access the MMT371A3B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMT37, or try a keyword search, such as Other Circular Connectors
