MMZ27333BT1 - NXP

Description: RF Amplifier InGaP HBT Linear Amplifier, 1500-2700 MHz, 35 dB, 33 dBm

Download MMZ27333BT1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

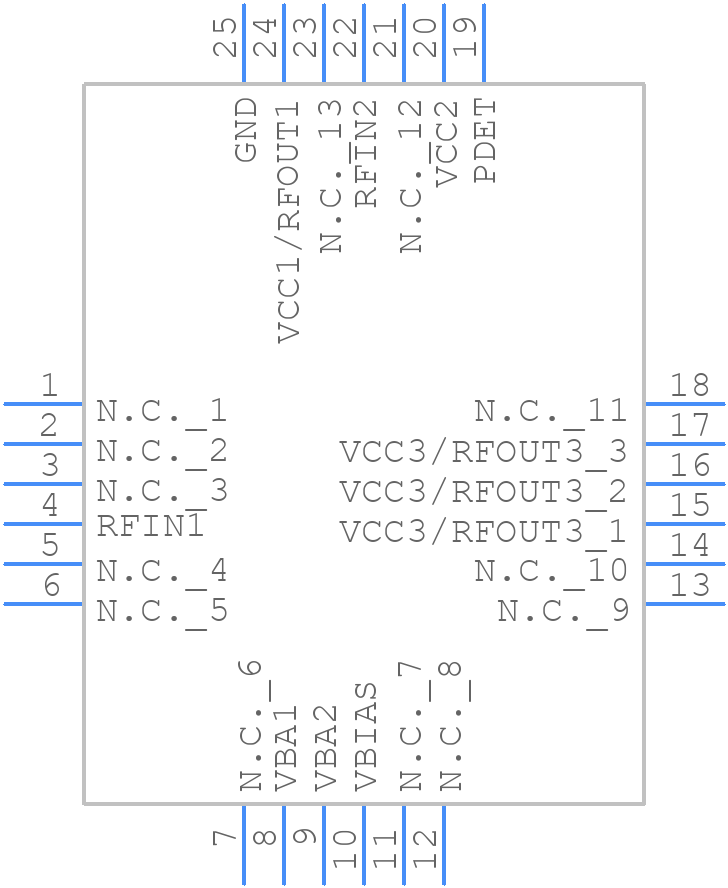

MMZ27333BT1 - NXP - PCB symbol
click to zoom
PCB Footprints
MMZ27333BT1 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT616-7
click to zoom
3D Models
MMZ27333BT1 - NXP - 3D model - Quad Flat No-Lead - SOT616-7
click to zoom

MMZ27333BT1 Details

  • Manufacturer Part Number:

    MMZ27333BT1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    34.8 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    1500 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    1.55

MMZ27333BT1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and use a common mode choke to reduce EMI.
  • Ensure that the output capacitor is properly sized and placed close to the output pin. Also, use a low-ESR capacitor and a 1-2 ohm resistor in series with the output capacitor to prevent oscillations.
  • The maximum input voltage is 28V, but it's recommended to keep it below 24V to ensure reliable operation and prevent damage to the device.
  • The device is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.
  • Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or ringing. Also, verify that the input voltage is within the recommended range and that the output capacitor is properly sized and placed.
