MNA-2W+ - Mini-Circuits

Description: RF Amplifier IC Cellular 500MHz ~ 4.5GHz 8-QFN (3x3)

Download MNA-2W+ Model

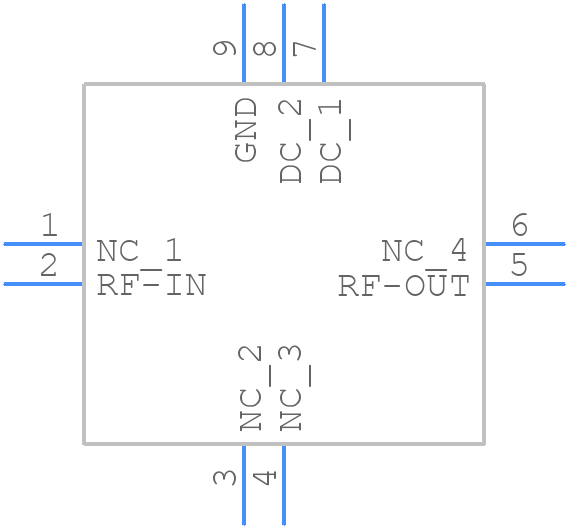

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MNA-2W+ - Mini-Circuits PCB footprint - Other - Other - MNA-2W+-1
click to zoom
3D Models
MNA-2W+ - Mini-Circuits  - 3D model - Other - MNA-2W+-1
click to zoom

MNA-2W+ Details

  • Manufacturer Part Number:

    MNA-2W+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-02-24

  • Manufacturer:

    Mini-Circuits

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

MNA-2W+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the MNA-2W+ is 65°C, but it's recommended to operate it at a maximum of 55°C for optimal performance and reliability.
  • While the MNA-2W+ is designed to operate in a normal humidity environment, it's not recommended to use it in high-humidity environments (>80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related issues.
  • For optimal performance, it's recommended to follow a good PCB layout practice, such as using a solid ground plane, keeping the signal traces short and away from the edges, and using via stitching to connect the ground plane to the device's ground pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • While the MNA-2W+ can handle high-frequency signals, it's not recommended to use it in switching power supply applications due to its limited power handling capability and potential for electromagnetic interference (EMI) issues. Instead, consider using a dedicated power amplifier or switch specifically designed for power supply applications.
  • For optimal performance, it's recommended to match the input and output impedance of the MNA-2W+ to 50 ohms. This can be achieved using impedance-matching networks or transformers. Consult the datasheet and application notes for more information on impedance matching.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MNA-2W+ Overview

Use the download button to access the MNA-2W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MNA-2, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
