MNA-3A+ - Mini-Circuits

Description: RF Amplifier MMIC AMPLIFIER SURFACEMOUNT

Download MNA-3A+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

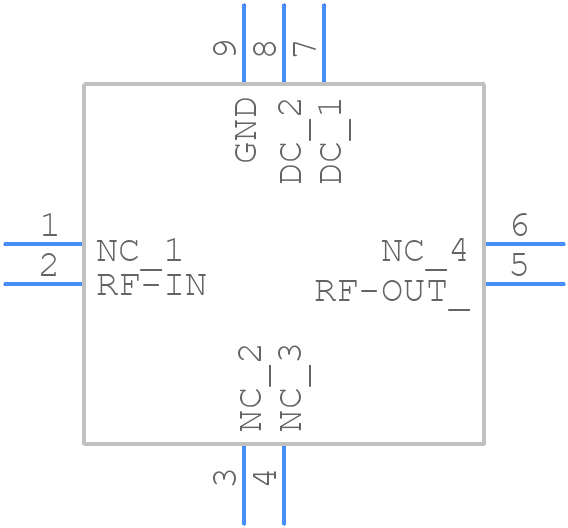

MNA-3A+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MNA-3A+ - Mini-Circuits PCB footprint - Other - Other - DQ849
click to zoom
3D Models
MNA-3A+ - Mini-Circuits - 3D model - Other - DQ849
click to zoom

MNA-3A+ Details

  • Manufacturer Part Number:

    MNA-3A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-09-26

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.64

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14.9 dB

  • Input Power-Max (CW):

    6 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC8,.12SQ,25

  • Power Supplies:

    2.8 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    32.6 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

MNA-3A+ Frequently Asked Questions (FAQs)

  • The MNA-3A+ can operate from -40°C to +85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C.
  • The MNA-3A+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the amplifier's input and output impedance to your system's impedance.
  • Use a multi-layer PCB with a solid ground plane, and place the amplifier close to the ground plane. Use short, wide traces for the input and output signals, and decouple the power supply with capacitors. Ground the amplifier's case to the PCB ground plane.
  • Yes, the MNA-3A+ can be used in a push-pull configuration to improve linearity and reduce distortion. However, this requires careful impedance matching and biasing of the two amplifiers.
  • The MNA-3A+ can handle up to +10 dBm of input power without damage. However, the recommended maximum input power is +5 dBm to ensure optimal performance and linearity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MNA-3A+ Overview

Use the download button to access the MNA-3A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MNA-3, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
