MNA-5W+ - Mini-Circuits

Description: IC RF AMP CEL 500MHZ-4.5GHZ 8QFN

Download MNA-5W+ Model

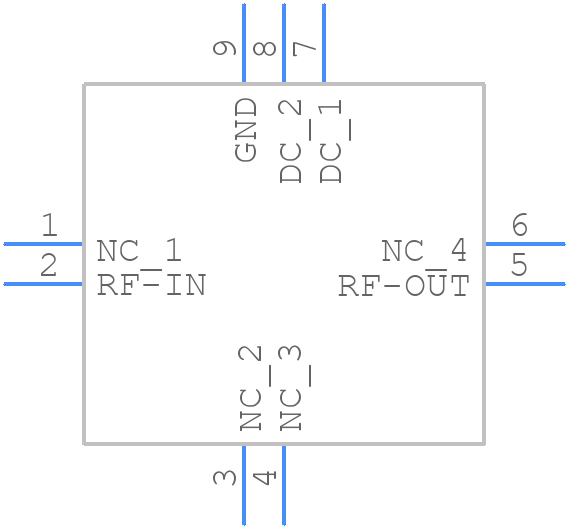

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MNA-5W+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ849
click to zoom
3D Models
MNA-5W+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - DQ849
click to zoom

MNA-5W+ Details

  • Manufacturer Part Number:

    MNA-5W+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.2

  • Additional Feature:

    VSWR 1.31 at 2.8V

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    9.3 dB

  • Input Power-Max (CW):

    5 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4500 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    2.8/5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    43 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.46

MNA-5W+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the MNA-5W+ is 85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C to ensure reliable operation.
  • While the MNA-5W+ is not hermetically sealed, it's designed to operate in a humid environment. However, it's recommended to follow proper PCB assembly and handling procedures to prevent moisture ingress. If you expect extreme humidity, consider using a conformal coating or potting the device.
  • Mini-Circuits recommends a solid ground plane under the device, with vias connecting the ground pins to the ground plane. Keep the input and output traces short and away from each other to minimize coupling. A 4-layer PCB with a dedicated ground plane is ideal.
  • Yes, the MNA-5W+ can be used in a push-pull or balanced configuration, but you'll need to ensure that the input and output impedances are properly matched. Consult the application note AN-60-014 for more information on push-pull amplifier design.
  • The typical noise figure of the MNA-5W+ is around 2.5 dB, but it can vary depending on the frequency, temperature, and operating conditions. Consult the datasheet or contact Mini-Circuits for more information on noise figure performance.
