MNA-7A+ - Mini-Circuits

Description: RF Amplifier MONOLITHIC AMPL / SURF MT/RoHS

Download MNA-7A+ Model

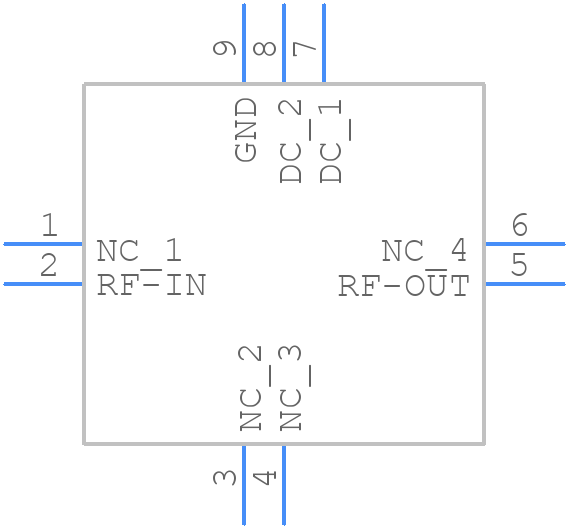

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MNA-7A+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ849
click to zoom
3D Models
MNA-7A+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - DQ849
click to zoom

MNA-7A+ Details

  • Manufacturer Part Number:

    MNA-7A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-02-24

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16.3 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    1500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)
